Treatise on the designing and construction of woven fabrics (1906)
Werner, Herman Oscar, 1881- [from old catalog] · [Providence? R.I. · leaf 16

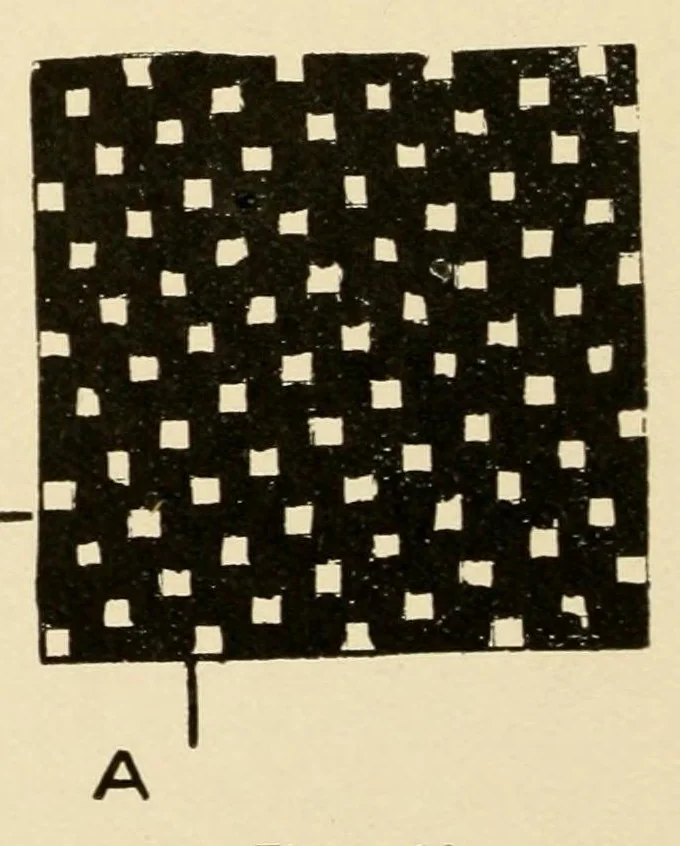

umbering them in rotation there is 1, 3, 5, 2 and 4. Now con- sidering the large numbers, or the pqints of interlacing, as the ends and the small numbers as the picks we find : That the first end interlaces with the first pick. That the third end interlaces with the second pick. That the fifth end… … Figure 12 Figure 11
Weaving · Textile design
