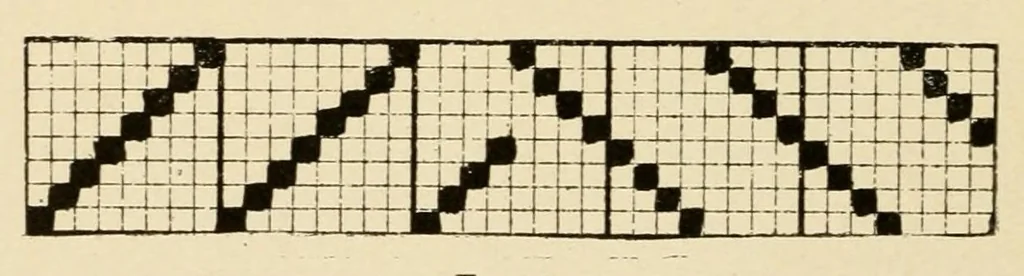

ong fancy drawing-in drafts are distinguished " Broken draws," " Point draws," " Skip draws," " Sectional draws," " Double draws," etc. Broken draws, as the name indicates, are those which are more or less broken up. They are generally used for weaves which have a broken -up effect; as, broken… … characters. Fig. 36 Front is made for a broken ^^^"^^ ^^ twill with long twill lines in both directions and Fig. 37 illustrates a draw ob- tained by reducing a fancy weave to its lowest number of harness-frames. Point draws are usu-
