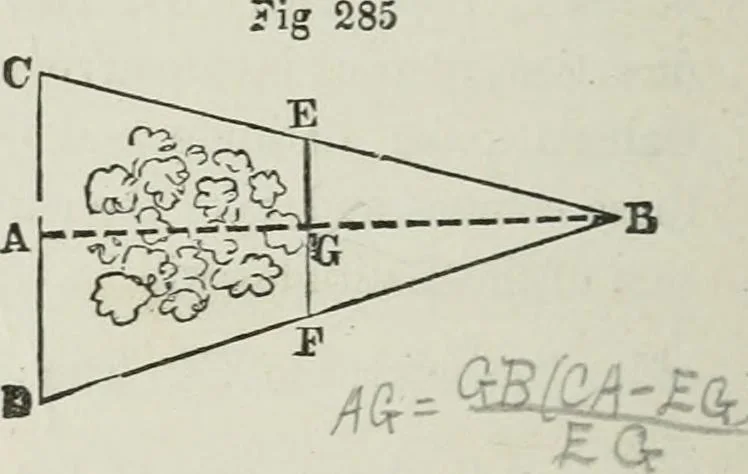

g case, by findingin a Traverse Table, the final Latitude and Departure of the desiredline (or a Latitude and Departure having the same ratio) and theBearing and Distance corresponding to these will be the angleand distance desued. (419) By similar triangles. Through A measure any line CD.Take a… … :^ EG, will give the distance EG, fromSo for other points. Fi-. 2£ (420) By triangnlation. Whenobstacles prevent the preceding me-thods being used, if a point, C, can befound, from which A and B are accessi-ble, measure the distances CA, CB,and the angle ACB, and thence calculate the angle CAB.…
