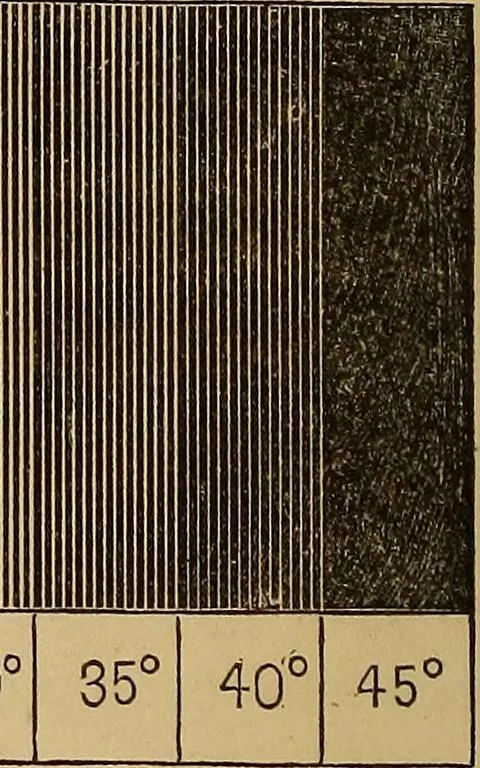

helast black. For the intermediate slopes, he makes the whiteto the black in the following proportion : The white : the olack :: 45°— angle of slope : angle of slope. For example, for 30°: light : shade :: 45°- 30° : 30° :: 1 : 2. Hence, the space between the strokes is to their thickness,as 45°… … parallel to the contour-lines, as shown in the upper right-handcorner of Fig. 113—a hill drawn by Lehmanns Method. Fig. 113.
