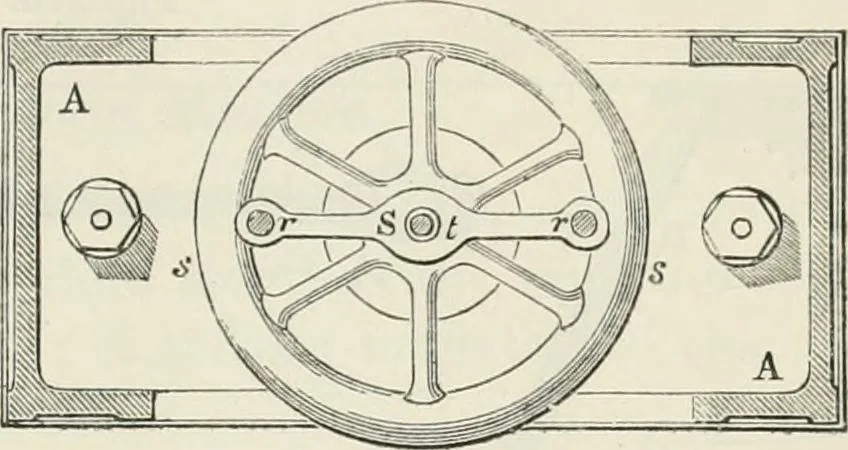

apparatus attached to thestandard, the component parts of which weshall now briefly enumerate. A cast-iron ring k, figs. 270 and 293,supported upon two upright rods r, r, isbrought in contact with the under eurfaceof the pinion by turning the hand-wheels, which is screwed upon its axis t,… … the under surface of the lower diaphragm of the standard, and theconnecting rods r, r, which pass through holes formed for their re-ception in both diaphragms ; being set in a diagonal direction inorder to clear the lever m, and other important parts -^S- 294. of the machinery. Fig.294 is a plan of…
