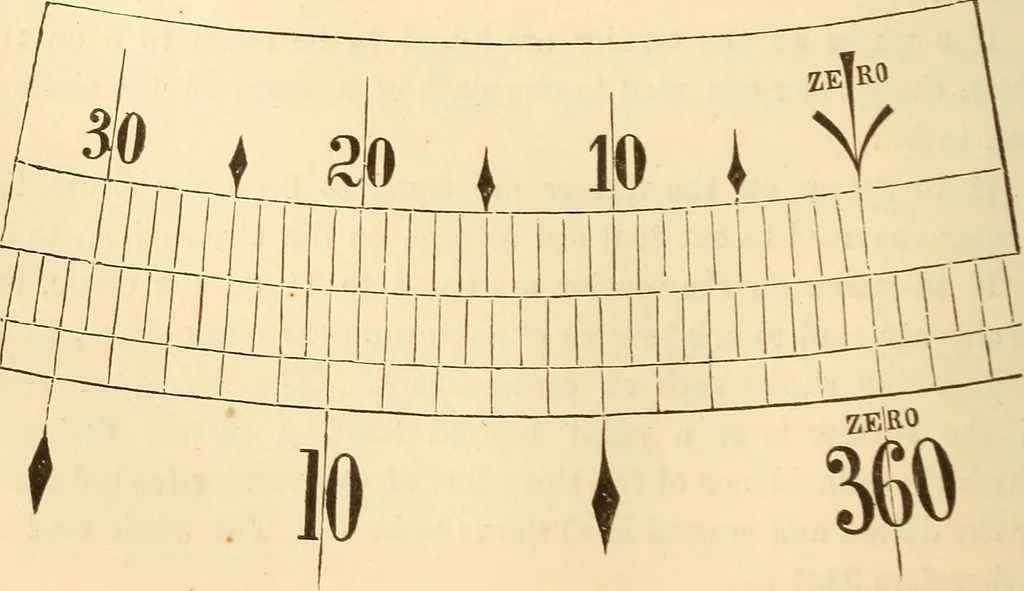

to 3. English compasses, or circumferentors, are sometimesthus arranged. If 60 spaces on the vernier are equal to 59 on the circle, thevernier can read to one sixtieth of a division on the circle—i. e.,to 1. 312. Circle divided to 30. Such a graduation is a very com-mon one. The vernier may be… … VERMEILS. 207 Suppose 30 spaces on the vernier to be equal to 29 on the cir- 29 X 30cle. Each space on the vernier will be = —^— = 29, and will therefore be less than a space of the circle by 1, to which the ver-nier will then read. Fig. 220 shows this arrangement. The reading is 0°, or 360°. In…
