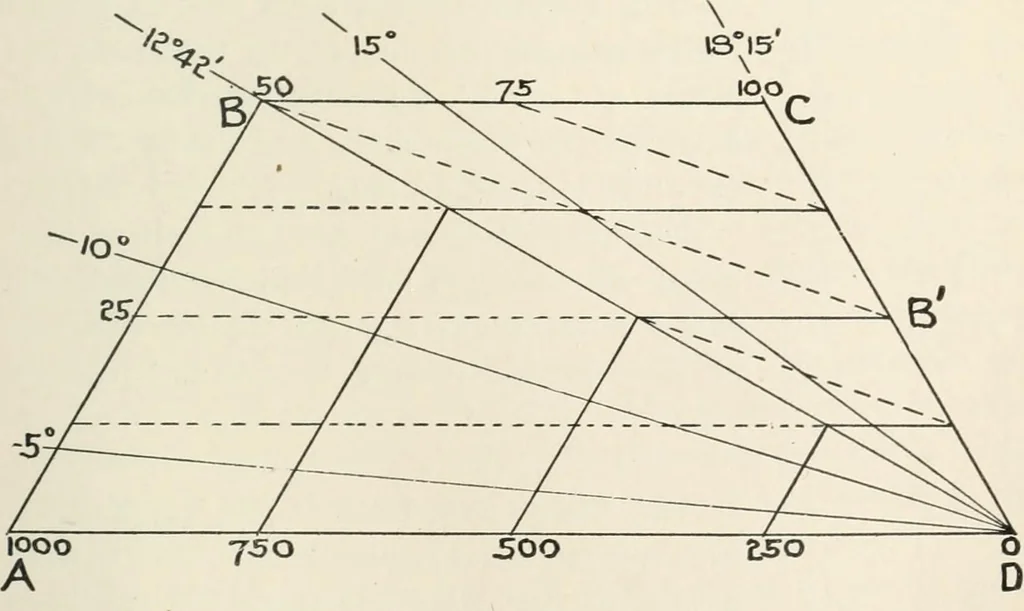

erring around toA B and B C from the third triangle. A convenient sized diagram is obtained by making A E = 10.Lines parallel to A E, A B, B C, and C D are drawn 0-1 inch apart,every tenth line heavy. To avoid confusing the diagram, only everyalternate line of those parallel to A E is continued… … the three sets of lines and numbers : e. g., distances, black; angles,red; elevations or corrections, blue. For correction on distances (Fig. 490), let the entire base AD 318 TOPOGRAPHY. Fio. 491.
