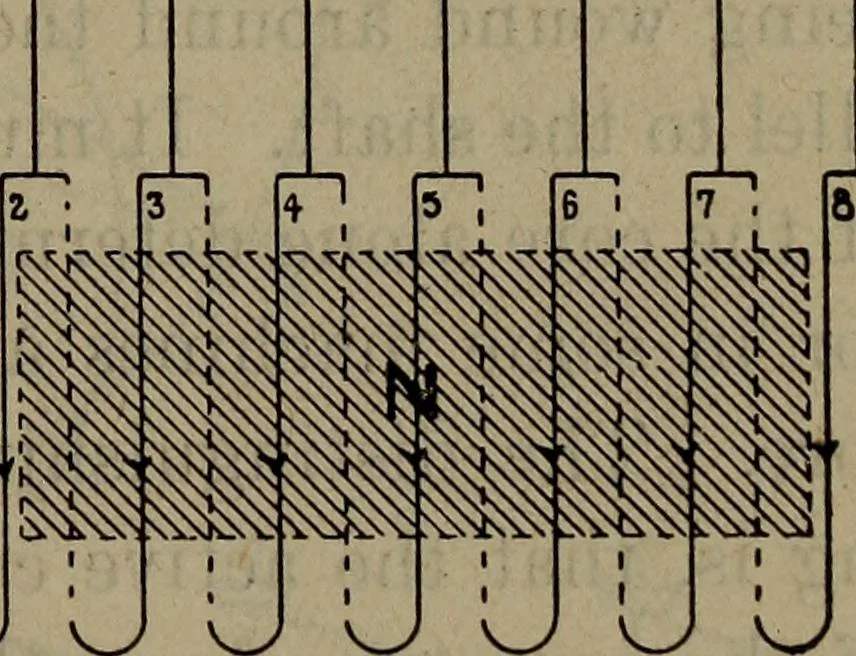

^ Kj Kj Fig. 515 In the figure the full lines denote the active conductors^and the dotted lines the inactive conductors on the insideof the armature ring. The small squares at the top repre-sent the commutator segments, and the shaded cross sectionsthe pole pieces. The arrows indicate the direction…
