Textile design; a working manual of approved practice in all details of the art of designing the various kinds of textile fabrics, together with practical applications of the principles of textile coloring and systematic methods of cost finding (1909)

American School of Correspondence, Umpleby, Fenwick. [from old catalog] · Chicago, American school of correspondence · leaf 224

An illustration from Textile design; a working manual of approved practice in all details of the art of designing the various kinds of textile fabrics, together with practical applications of the principles of textile coloring and systematic methods of cost finding, 1909, leaf 224

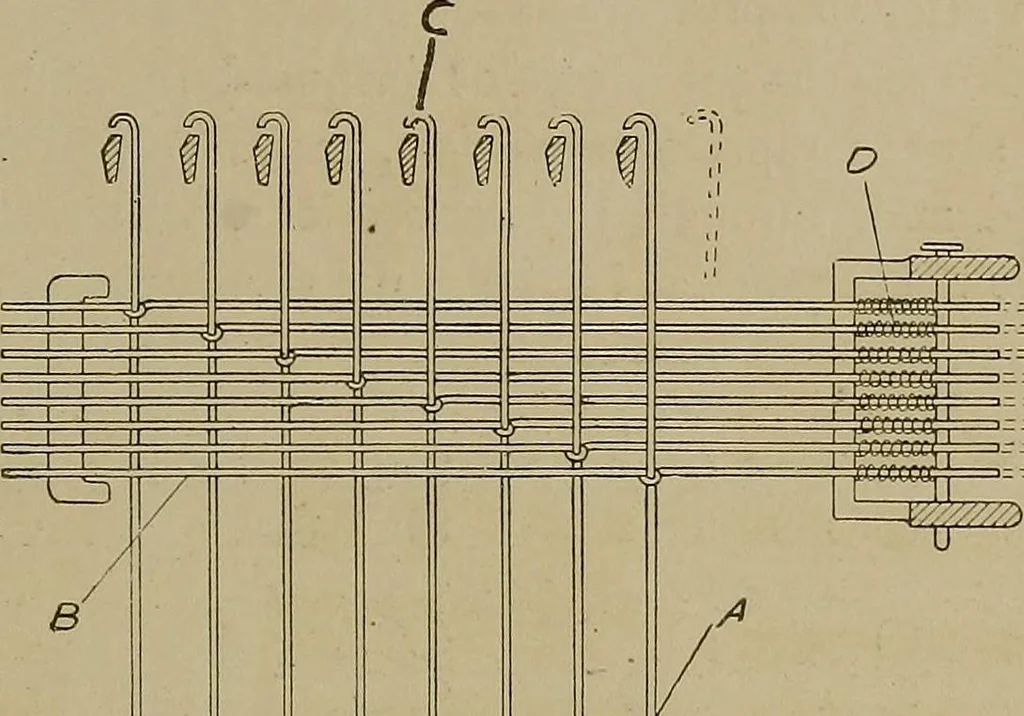

TEXTILE DESIGN 189 Oil which one pick of the design is cut, just as one pick of anordinary design is placed on one bar of the harness chain. Thiscard passes over the cylinder, shown in Fig. 276, in much the samemanner as a bar in the ordinary harness chain passes over the chainbarrel. The cylinder… … i Fig. 274 tact with the ends of the needles B; the ends of the needles enteringthe holes in the cylinder. Now, if a blank card is placed on thecylinder, the holes will be covered and all the needles will bepressed back, carrying their upright hooks out of the path of the 203 190 -TEXTILE DESIGN…
