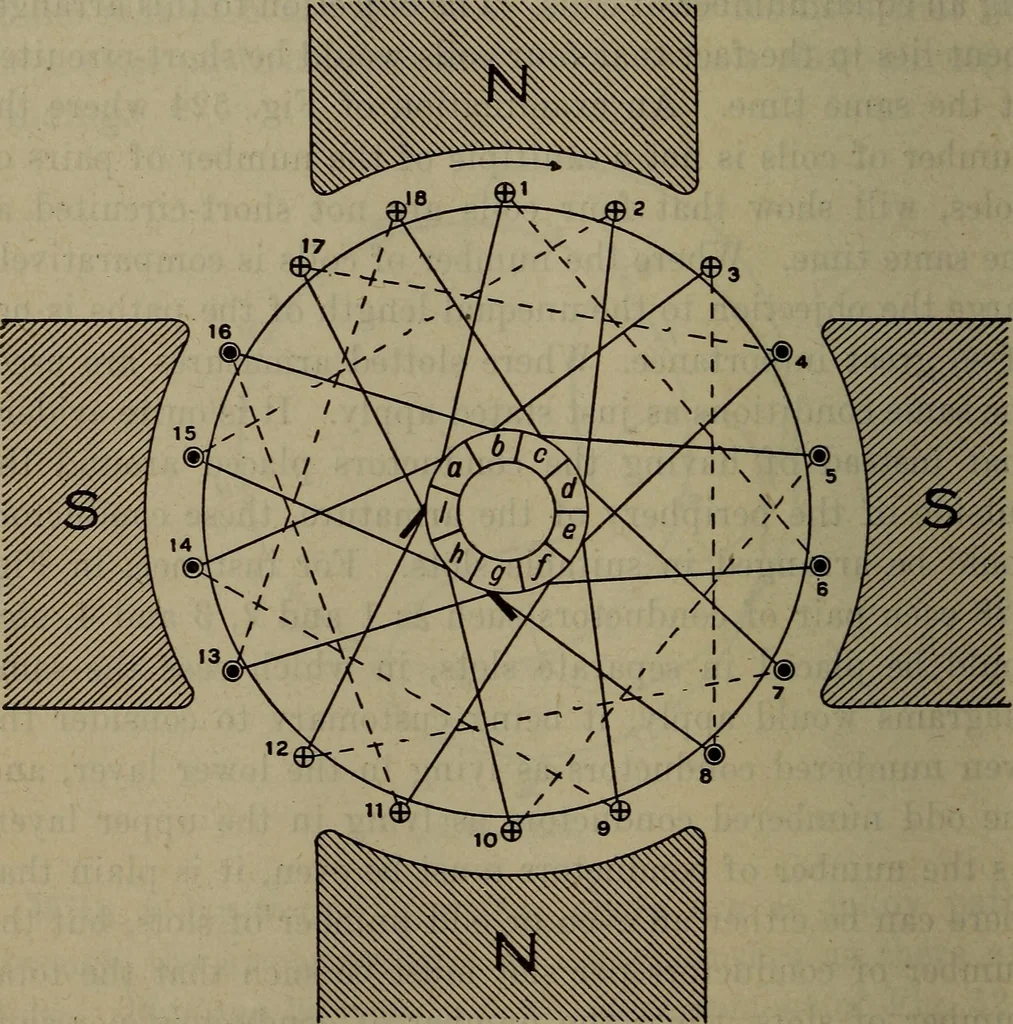

segments. The con-ductors are placed on in the same positions, and the con-mections on the back of the armature are identical withI those of the previous figure. The distinguishing feature of 1182 Steam Engineering this armature lies in the method of connecting the variouscoils to each other^ and… … FiG. 529 jacent to the one from which it started; in the present casethe end of each armature coil is connected by means of acommutator segment^ to a coil some distance in advanceof it. The developed winding clearly shows the manner in whichthis connection is made. It will be seen that the…
