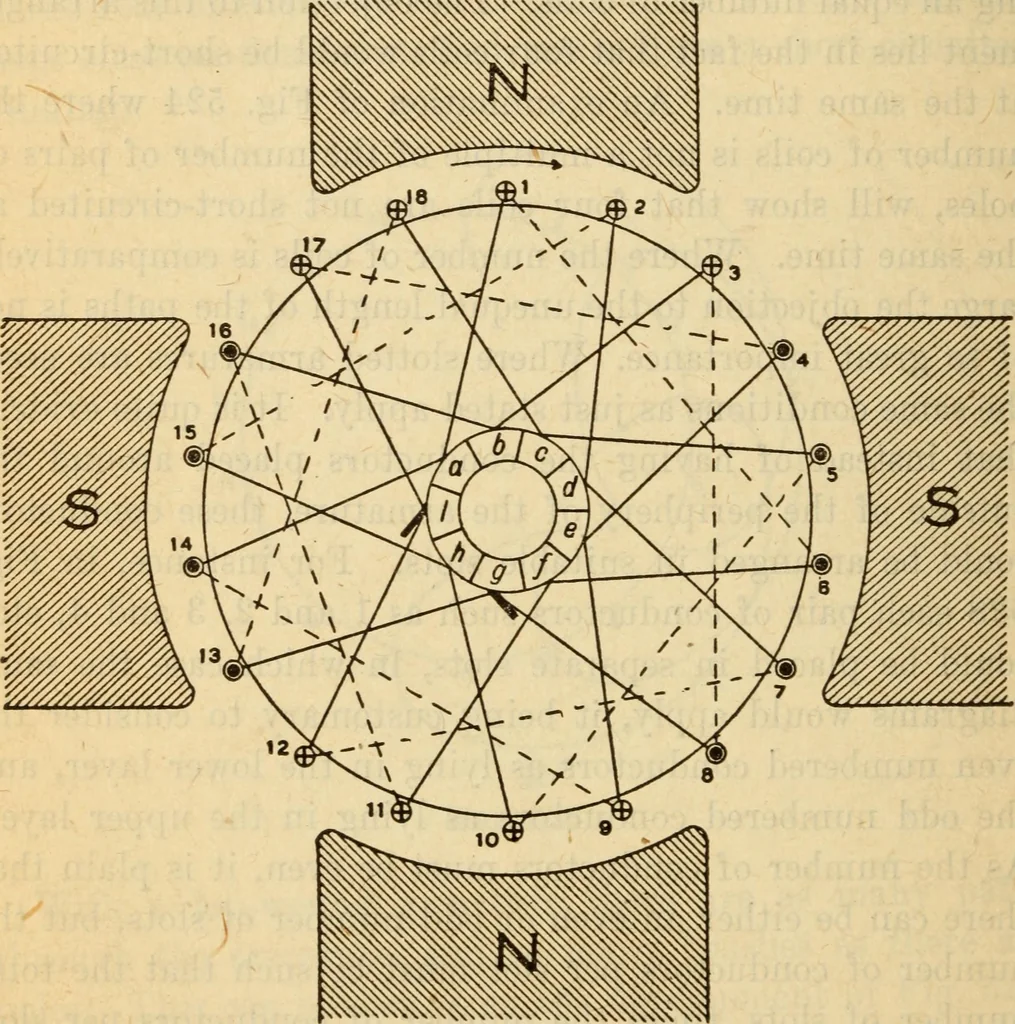

ments. The con-ductors are placed on in the same positions, and the con-nections on the back of the armature are identical withthose of the previous figure. The distinguishing feature of 1182 Steam Engineering f-^ this armature lies in the method of connecting the variouscoils to each other^ and to… … FiG. 529 jacent to the one from which it started; in the present casethe end of each armature coil is connected by means of acommutator segment, to a coil some distance in advanceof it. The developed winding clearly shows the manner in whichthis connection is made. It will be seen that the…
