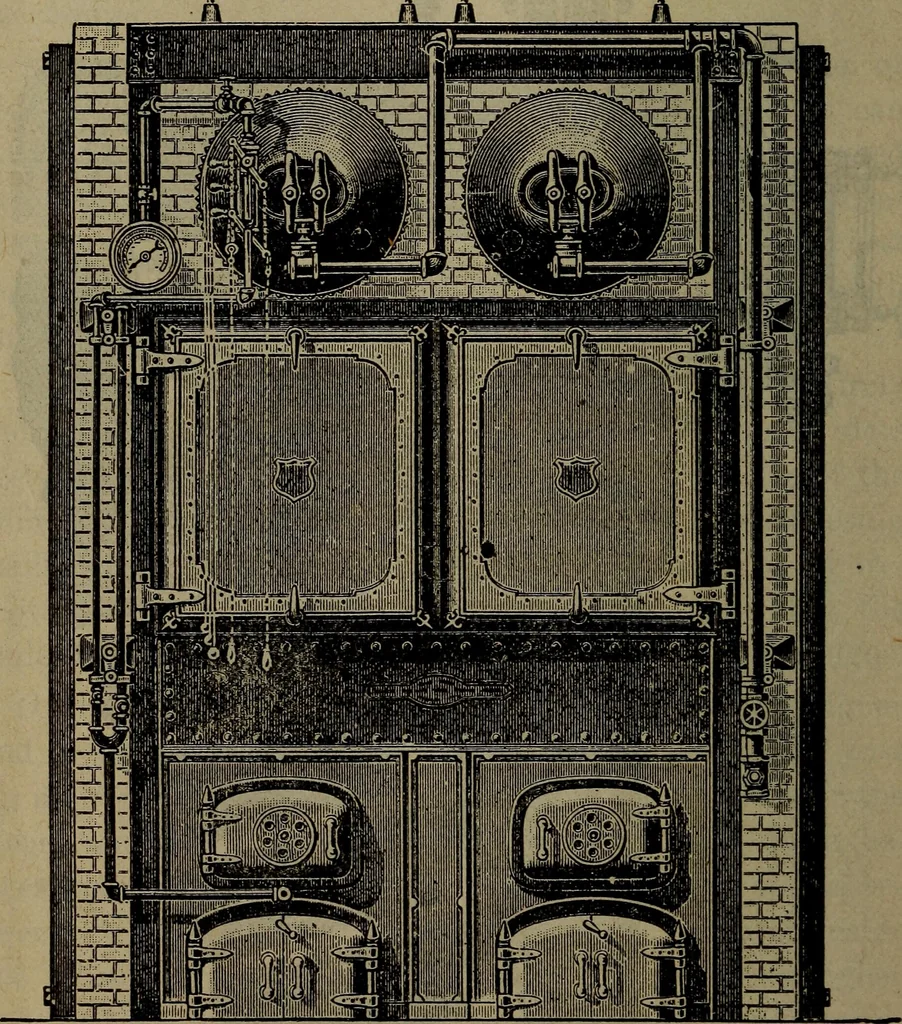

Fig. 9partial vertical section babcock & wilcox boiler 20 Steam Engineering tinuous circnlation. As the passages are all large andfree^ this circulation is very rapid, sweeping away thesteam as fast as formed, and supplying its place with wa- … FiG. 10 STANDARD FRONT OF BABCOCK & WILCOX BOILER ter; absorbing the heat of the fire to tlie best advantage;causing a thorough commingling of the water throughoutthe boiler and a consequent equal temperature, and pre- Stirling Water Tube Boiler 21 venting^ to a great degree, the formation of…
