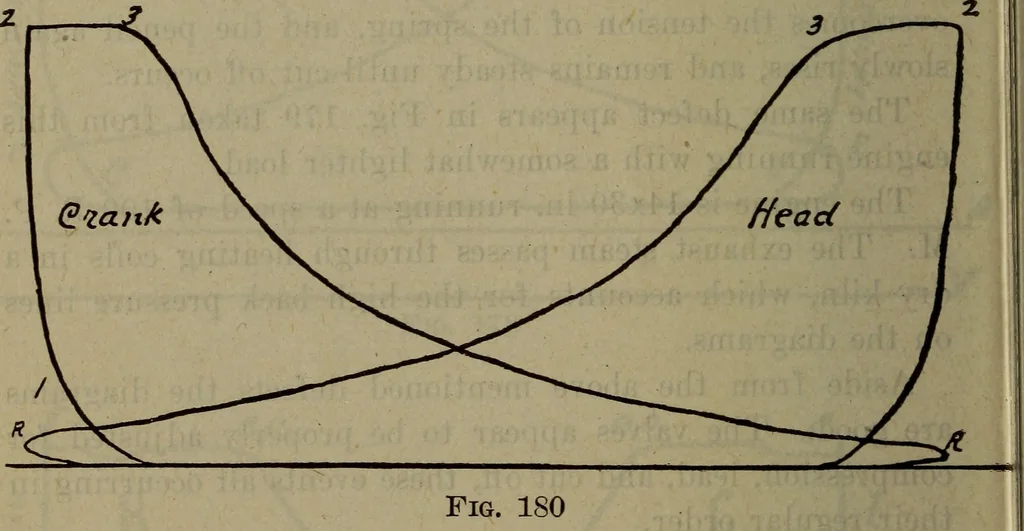

nstrumentality of the indicator. 496 Steam Engineering The bad effects of unequal cut off will make themselvesfelt^ and heard also in time. The engine will not developthe power that it is capable of developing, the coal con-sumption per H. P. per hour will be greater than it shouldbe, and it will… … Fig. 180 Figure 180 is a reproduction of a diagram taken from aCorliss engine 30 in. bore by 48 in. stroke, running 82E. P. M. One of the minor defects of the diagram is that it occu-pies too much space, meaning that it is too high, and toolong. The fault in height is caufeed by using too light…
