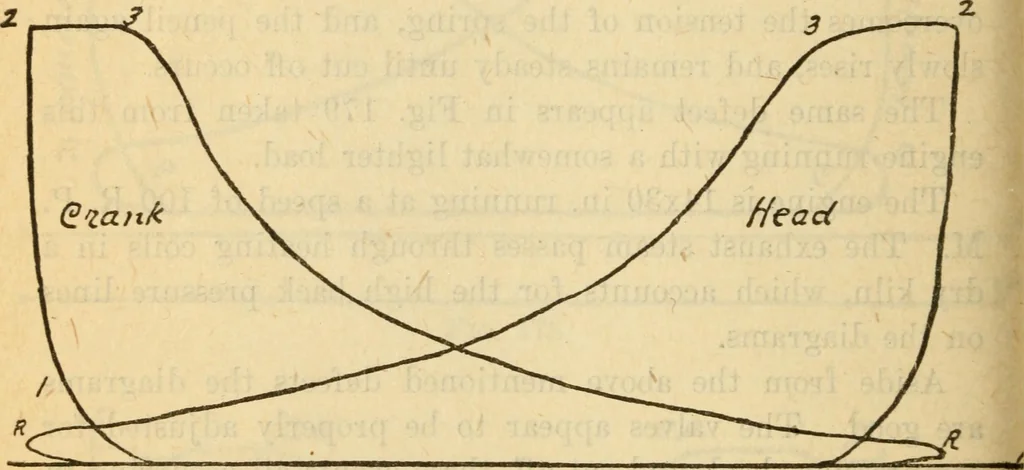

trumentality of the indicator. 496- Steam Engineering The bad effects of unequal cut off will make themselvesf elt^ and heard also in time. The engine will not developthe power that it is capable of developing^ the coal con-sumption per H. P. per hour will be greater than it shouldbe^ and it will… … Fig. ISO Figure 180 is a reproduction of a diagram taken from aCorliss engine 30 in. bore by 48 in. stroke, running 82E. P. M. One of the minor defects of the diagram is that it occu-pies too much space, meaning that it is too high, and toolong. The fault in height is caused by using too light…
