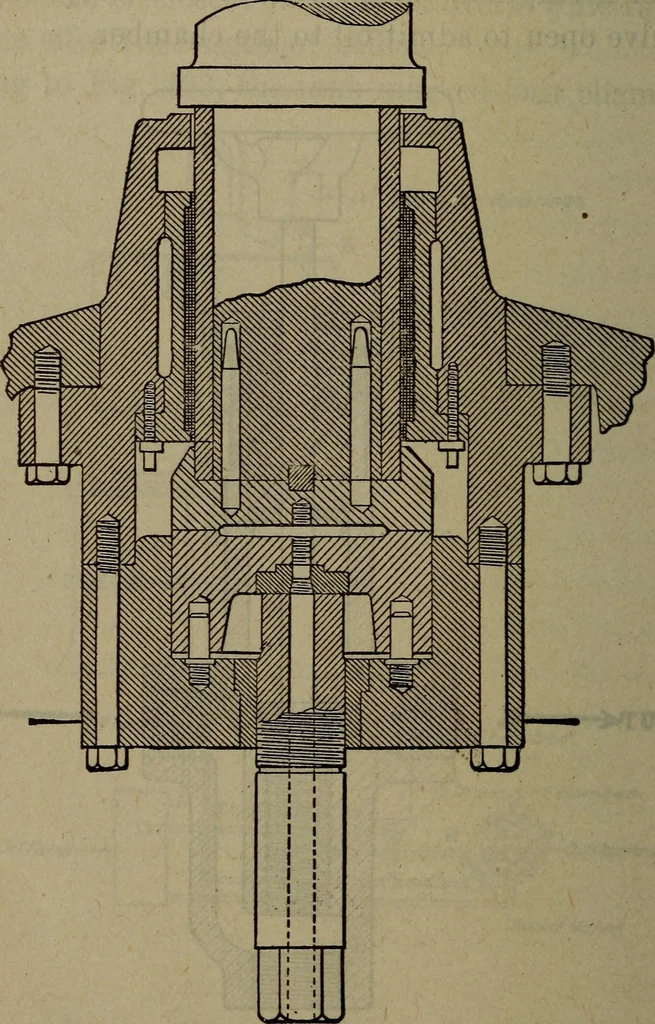

Fig. 264 In installations where oil is used for the turbine stepbearing;, oil for the operating gear and bearings may betaken from the high pressure pipe line, on the pump sideof the step baffler, through a reducing valve. The piping 628 Steam Engineering system remains as shown diagramatically in… … FiG. 265 sor, this equalizing tank may be piped in the system, theconnection being made on the side of the tank (as providedfor). The refilling of the tank is thus much simplified,and its capacity for emergency operation greatly iEcreasen Curtis Steam Turbine <S2£ Care should be taken to insure…
