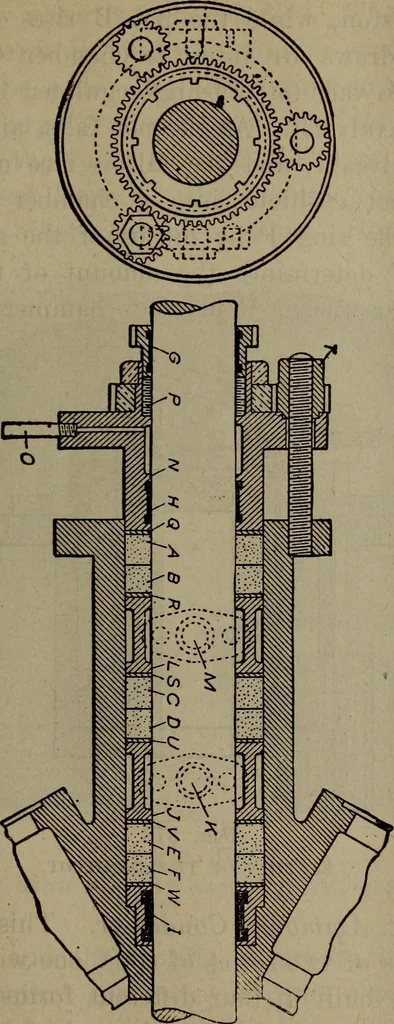

tact with the rod are G, H and I andthey are made an exact fit. If the rod becomes scoredand is turned down, these parts must be rebabbitted. Totighten the stuffing-box gland it is only necessary to ad-just the nut T, which is a pinion nut and is in meshwith the inside gear and the other two pinion… … Fig. 372stuffing-box of the double-acting compressor md connected by the usual vertical link rod to the crank)n the valve stem. The central cylinder A acts as a 890 Steam Engineering guide and piston^ while the pot B rises and falls^ andby so doing draws air into the chamber C through thepassage…
