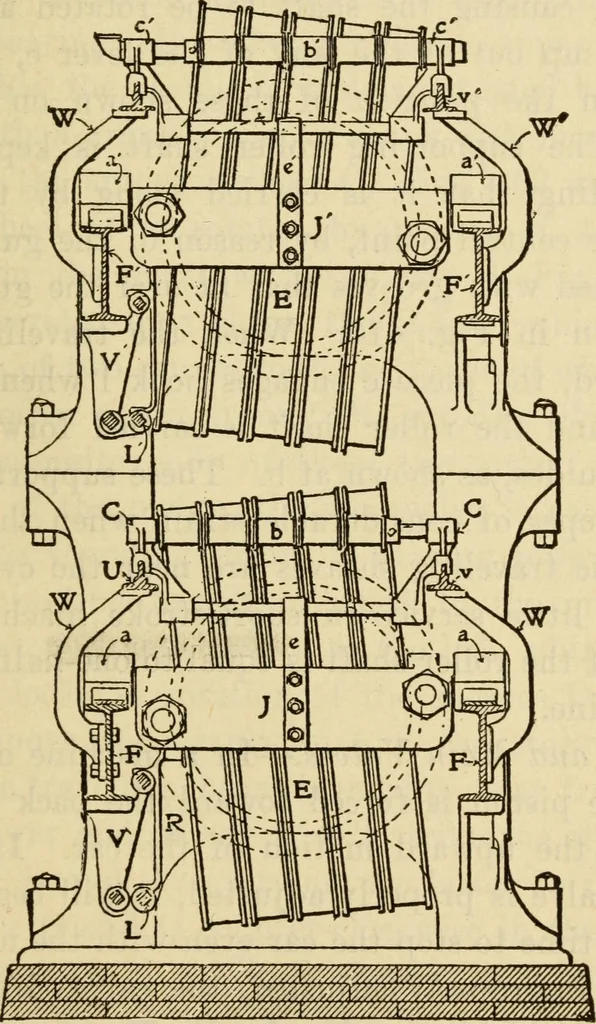

the lower floor of the building. In this machine the sup-porting rollers b are at the extreme right-hand end of Hydraulic Elevators 981 the guides IT. In the lower machine sheaves D are closeto the cylinder, as they will be when the elevator car isat the top floor. In this case the supporting… … Fig. 410 tween the sheaves D and E, the better to support the ropesat the central point. On the upper machine in Pig. 408a hook 1 mounted on a shaft carried by the guide shoes cengages a piece e, secured to the part J, as shown in Fig.510, at the center. At one end of the shaft which carries 982…
