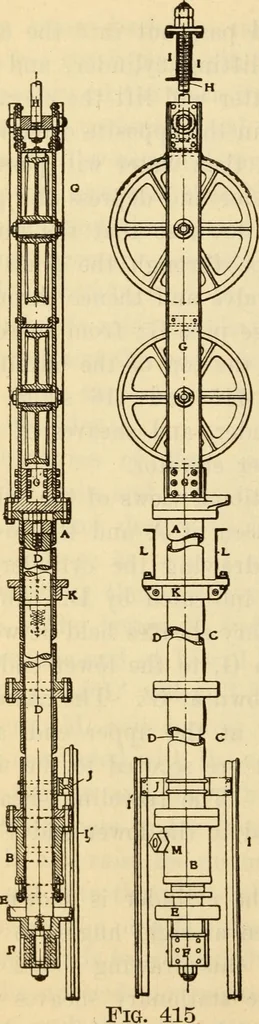

g. The traveling sheavesare carried in a crosshead attached to the lower end F ofthe plunger. The internal construction of the cylinder is shown inthe vertical section, which is taken at right angles to theexterior view. The upper end of this drawing shows theway in which the bearings of the…
