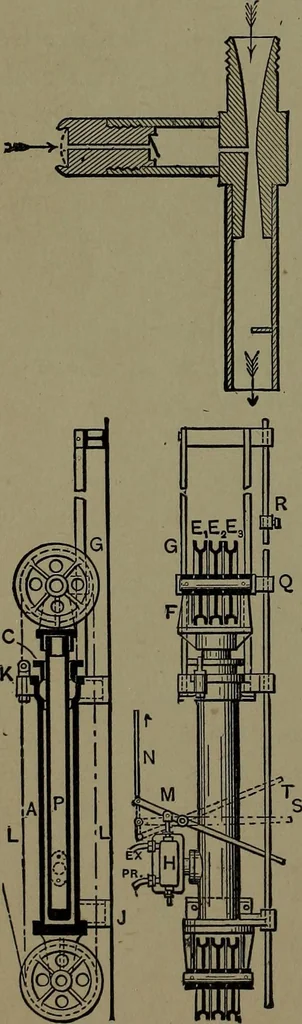

^^^ ral 607. SPRAY JET NOZZLK^The spi- wmgs on the central cone set the _\ J water into a whirl, and induce a spray by-^^^^ centrifugal action. … ^m 60S. HEROS FOUNTAIN.—The water inthe upper basin exerts a pressure upon the air inthe lower receptacle, which is transferred to thesurface of the water in the middle basin andforces it up in the jet. Many beautiful modifica-tions of this principle are shown in modern de-vices. 609. CHAPMAN…
