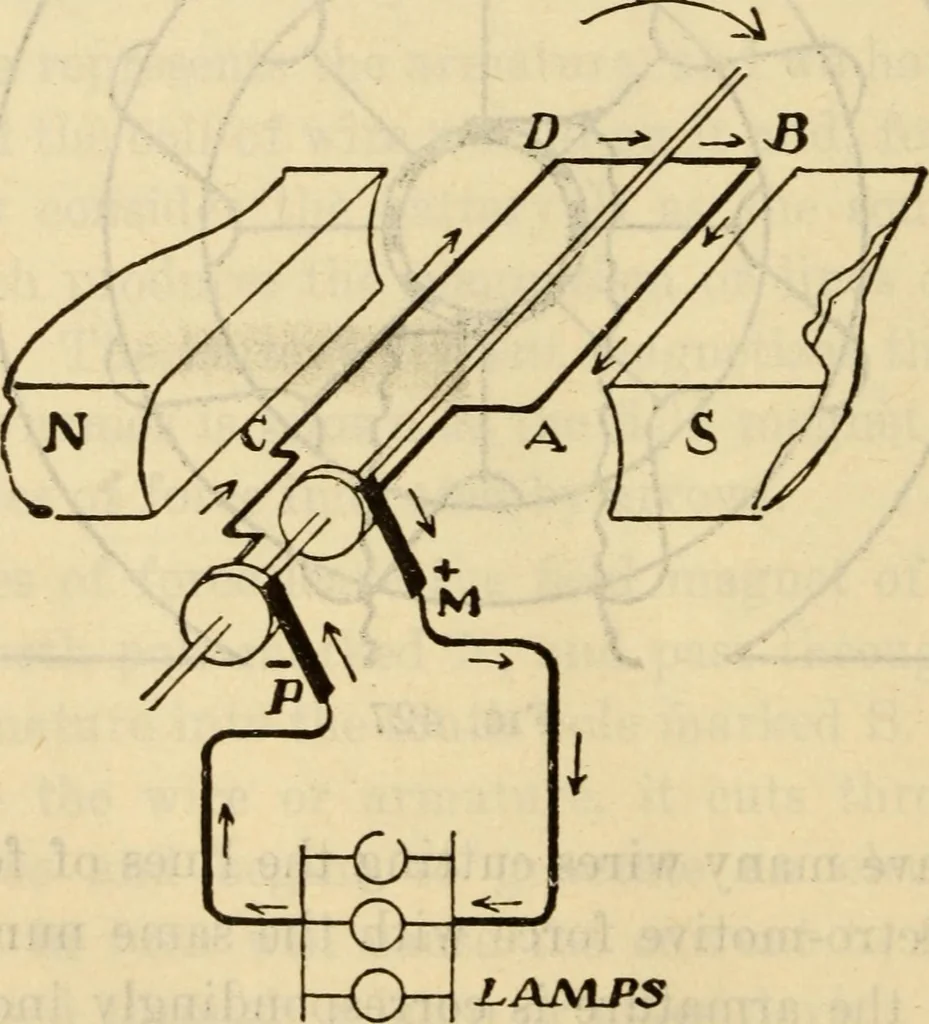

Fig. 428use of collecting or slip rings … Fig. 429the simple alternating current dynamo,positive BRUSH M IS Elementary Idea of an Alternating Current Dynamo.—If instead of the brushes B and B as shown in Fig. 426,we collect and transmit the current to the outside circuit I The Dynamo 1037 by means of collector rings as shown in Fig. 428,…
