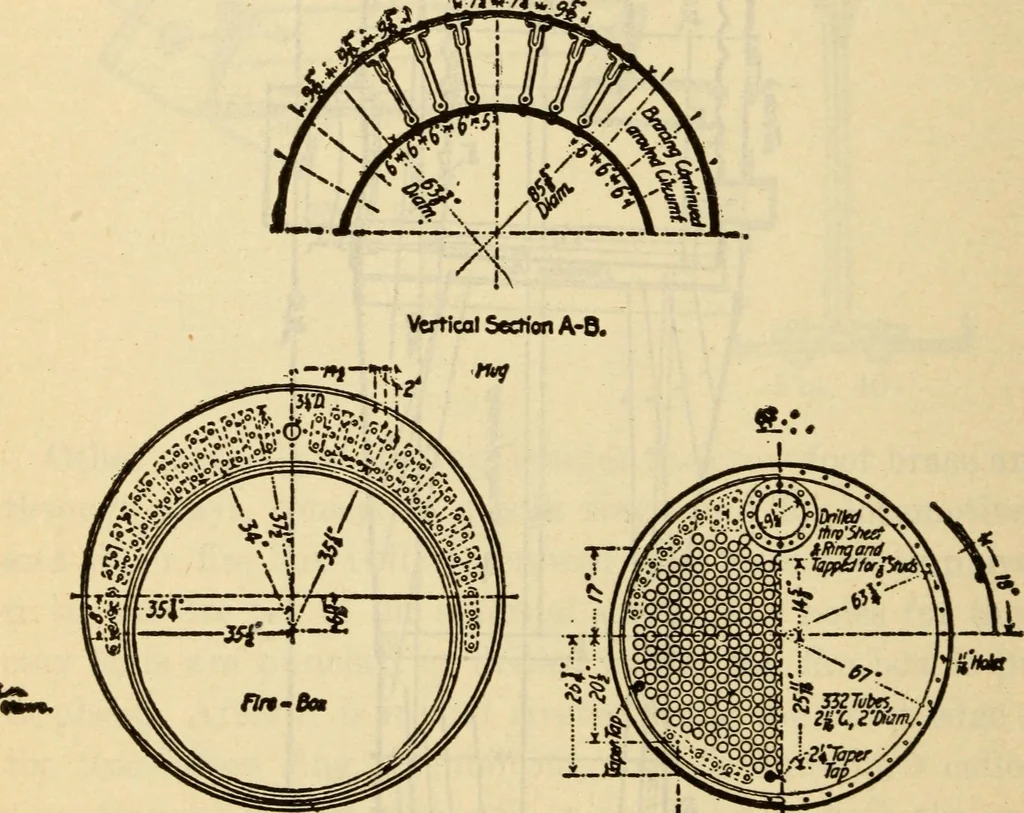

An illustration from Twentieth century handbook for steam engineers and electricians, with questions and answers; a practical nontechnical treatise .., 1916, leaf 119 — Fig. 41 2U Steam Engineering at once. The problem of properly staying the flat crownsheet of a horizontal fire box boiler, especially a locomotiveboiler, is a very difficult one and has taxed the inventivegenius of some of the most eminent engineers. Before the invention of the Belpaire boiler,… … End Devotion,knowing Attachment of Wong. Stays. Fig. 42 •*— &¥* Half End DevotionHalf Section C-tX I of Smoke-Co*. of staying the crown sheet was by the use of cumbersomecrown bars or double girders extending across the top ofthe crown sheet, and supported at the ends by special cast-ings that…
