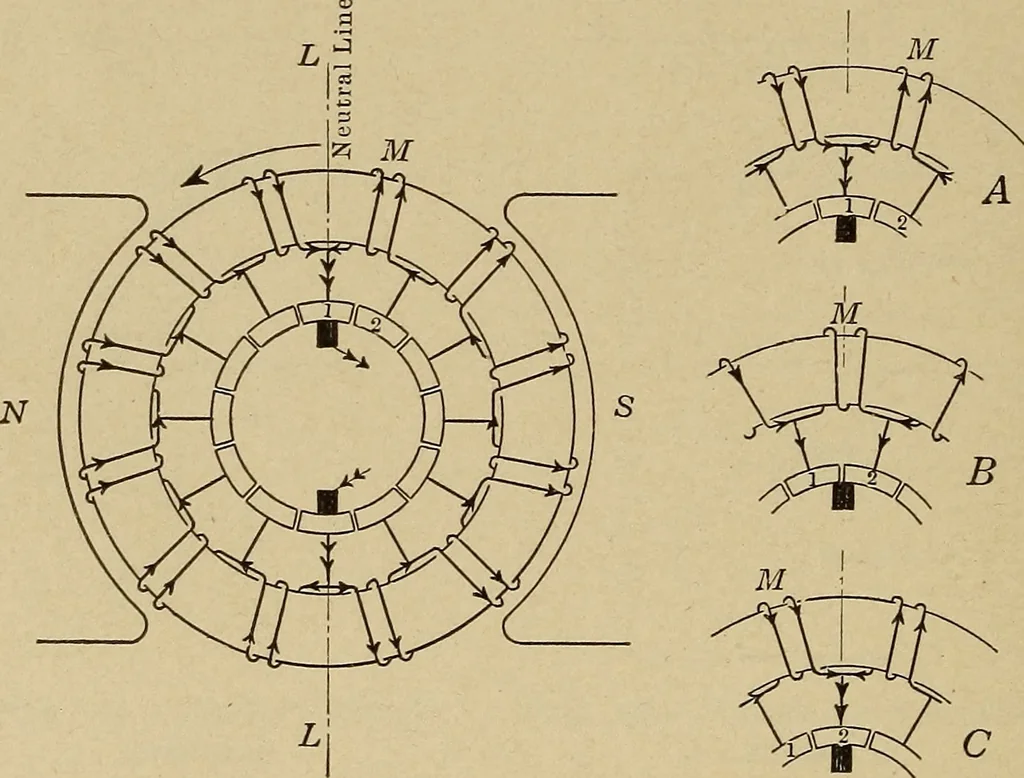

tion; when connected inside of the series coils the connec-tion is said to be short shunt. CHAPTER XITHEORY OF COMMUTATION 70. Commutation.—As the armature of a direct-current genera-tor revolves, the direction of the current in each conductorchanges while that conductor passes from one pole to… … Fig. 86.—Diagram showing the reversal of the current in coil M. ment 1 to segment 2 and the current in the coilM is automaticallyreversed. For a short period, as at B, the brush is in contact withboth segments and, during this interval of time, the coil M is shortcircuited, but no e.m.f. is…
