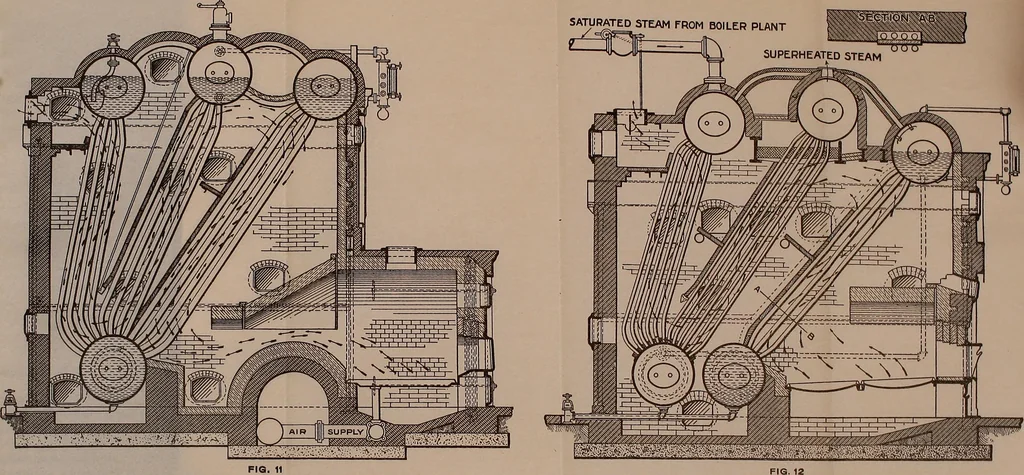

odified to suit special conditions.The brick setting is so clearly shown in Figures 11 and 12tliat an extended description is unnecessary. No specialshapes or other material not found in open market are need-ed. Any necessary repairs to the brick work can be madewithout disturbing the boiler… … Stirling Water Tube Boiler 23 large triangular space between boiler front, tubes and muddrum is available for a combustion chamber, and for instal-lation of sufficient grate surface to meet the requirementsof the lowest grades of fuel. Baffles and Course of Gases. The baffle walls rest di-rectly…
