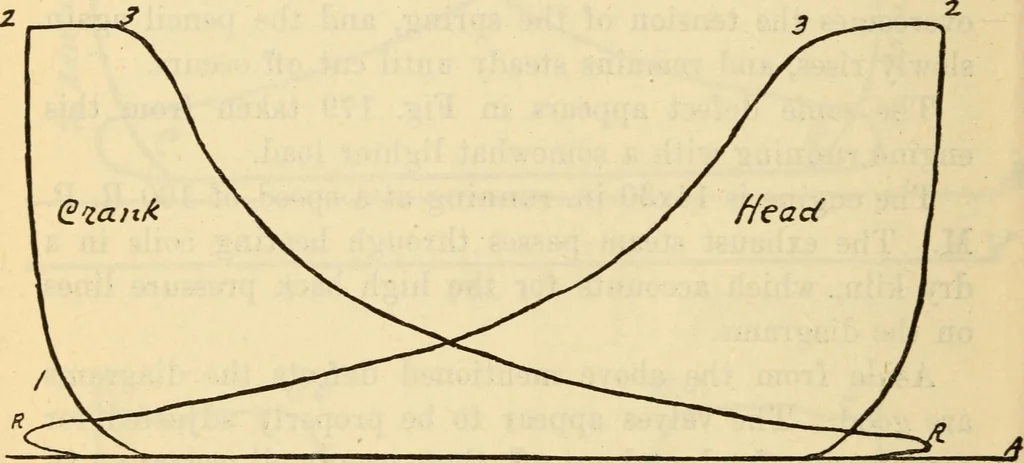

nstrumentality of the indicator. 496 Steam Engineering The bad effects of unequal cut off will make themselvesfelt, and heard also in time. The engine will not developthe power that it is capable of developing, the coal con-sumption per H. P. per hour will be greater than it shouldbe, and it will… … Fig. ISO Figure 180 is a reproduction of a diagram taken from aCorliss engine 30 in. bore by 48 in. stroke, running 82B. P. M. One of the minor defects of the diagram is that it occu-pies too much space, meaning that it is too high, and toolong. The fault in height is caused by using too light…
