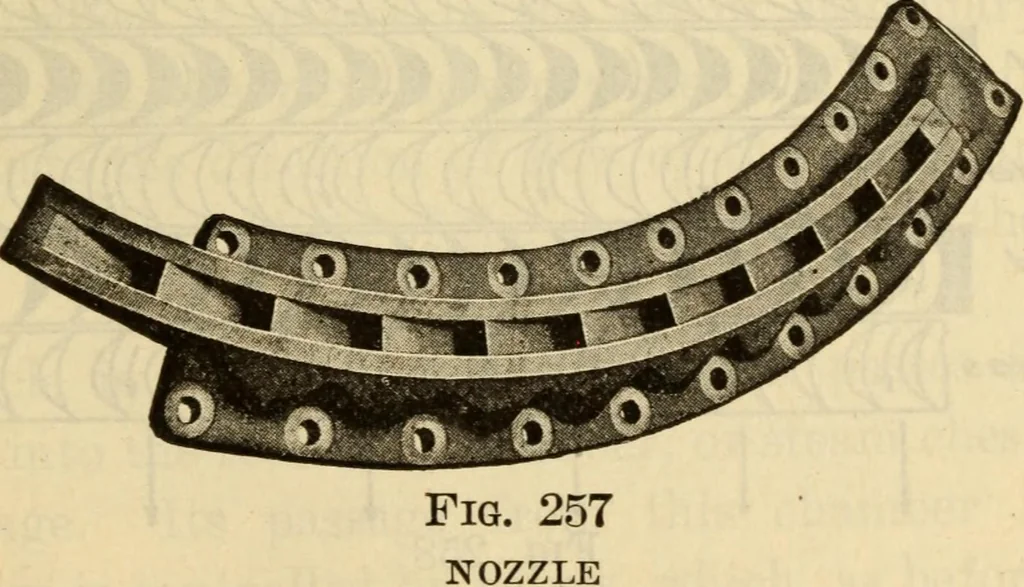

stationary buckets for curtis steam turbineFig. 256 … Fig. 257 shows a nozzle diaphragm with its variousopenings, and it will be noted that the nozzles are set atan angle to the plane of revolution of the wheel. 616 Steam Engineering Fig. 258 is a diagram of the nozzles, moving blades andstationary blades of a two-stage Curtis steam turbine. Thesteam…
