Twentieth century handbook for steam engineers and electricians, with questions and answers; a practical nontechnical treatise on the care and management of steam engines, boilers and electric machinery (1922)
Swingle, Calvin Franklin, 1846- [from old catalog] · Chicago, F. J. Drake & company · leaf 628

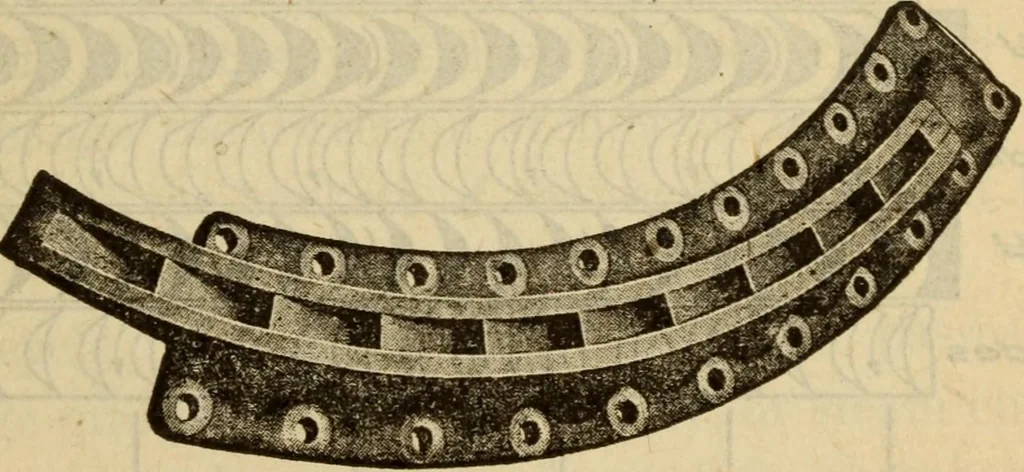

stationary buckets for curtis steam turbineFig. 256 … Fig. 257 NOZZLE Fig. 257 shows a nozzle diaphragm with its variousopenings, and it will be noted that the nozzles are set atan angle to the plane of revolution of the wheel. 616 Steam Engineering Fig. 258 is a diagram of the nozzles^ moving blades andstationary blades of a two-stage Curtis steam…
