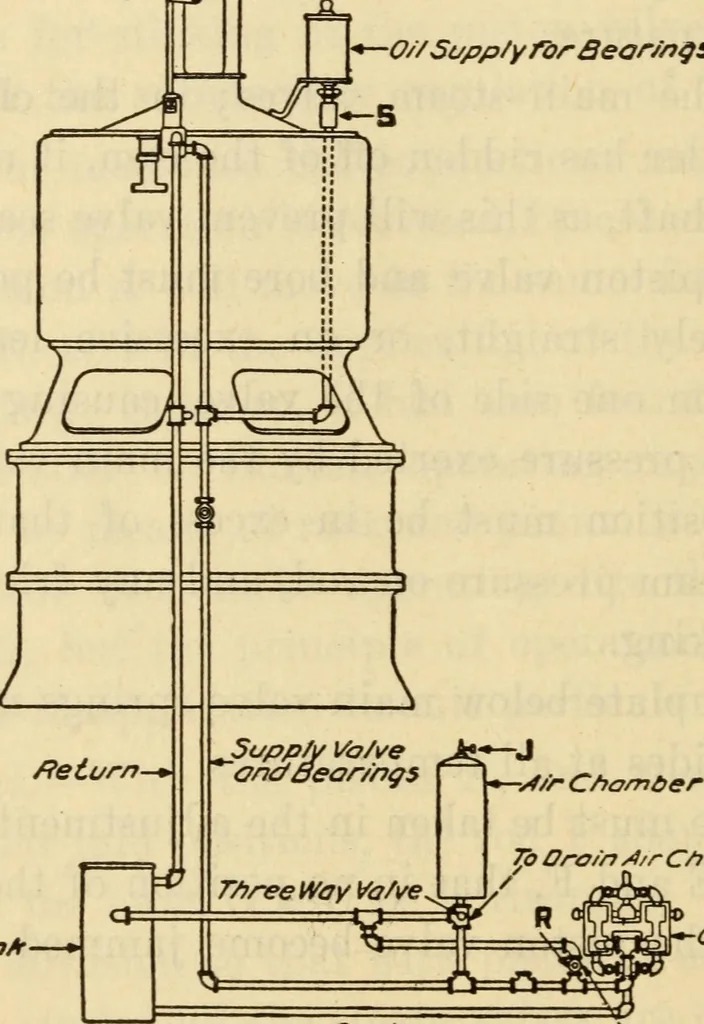

ssure foroperating the gear. When the speed is constant and thevalve not taking any oil, the excess supplied by pumps willbe discharged through this relief valve. 626 Steam Engineering The special reducing valve shown in Fig. 264, and at S,Fig. 263, is provided to control the amount of oil… … ft Oro/r> /l/r Cnamoer p - 0//PtsMp3 Suction sfte/,efVa/ve Fie. 3 Fig. 263 provided in order to give a reserved capacity of oil shouldthe pumps for any reason stop, and also to form an air-cushion on the system. The valve at the top of this tankshould be kept closed, and the oil allowed to…
