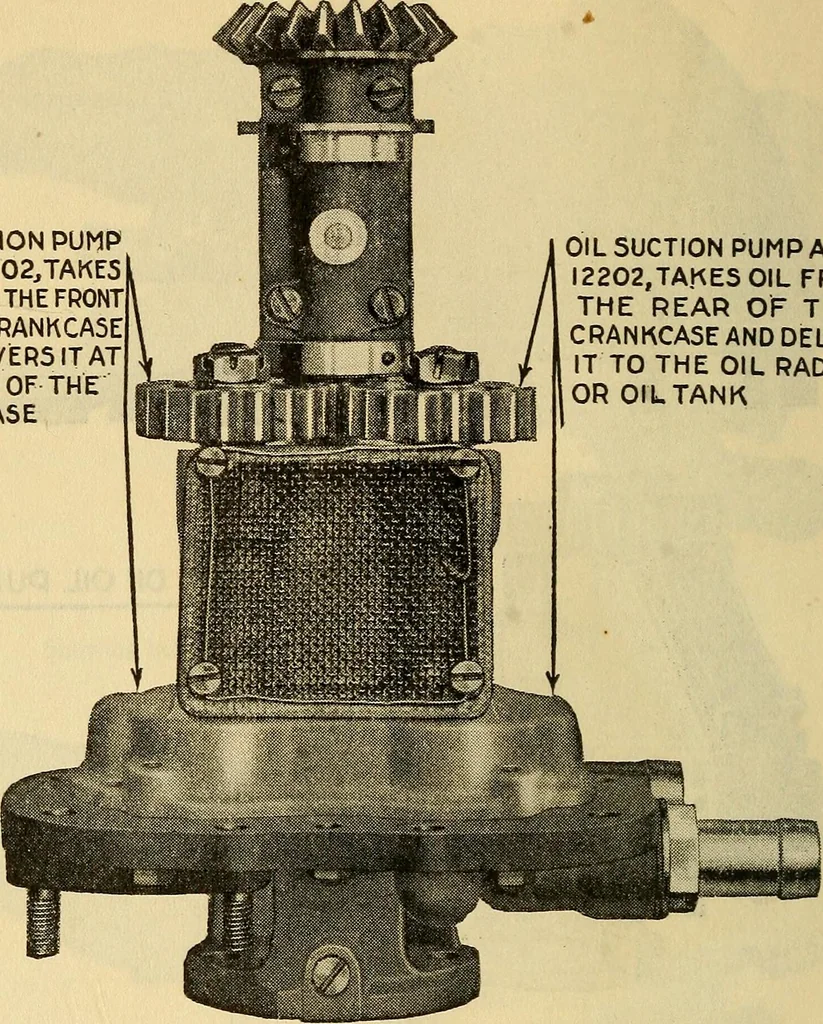

Plate 21Removing oil strainer assembly from the lower crankcase. 59 H I S P A N O SUIZA OIL SUCTION PUMPA5S,Y.-I2202,TAKE5OIL FROM THE FRONTOF THE CRANKCASEAND DELIVERS IT ATTHE REAR OF THECRANKCASE OIL SUCTION PUMP ASSV.12202,TAKES OIL FROMTHE REAR OF THECRANKCASE AND DELIVERSIT TO THE OIL… … Plate 22Rear view of oil pumps assembly and gear pump drive pinion. in the form of a spray and together with the oil thrownfrom the main bearings by the crankshaft, provideslubrication for the cylinders, pistons and piston pins. The fourth or front main bearing has a by-pass andis also provided…
