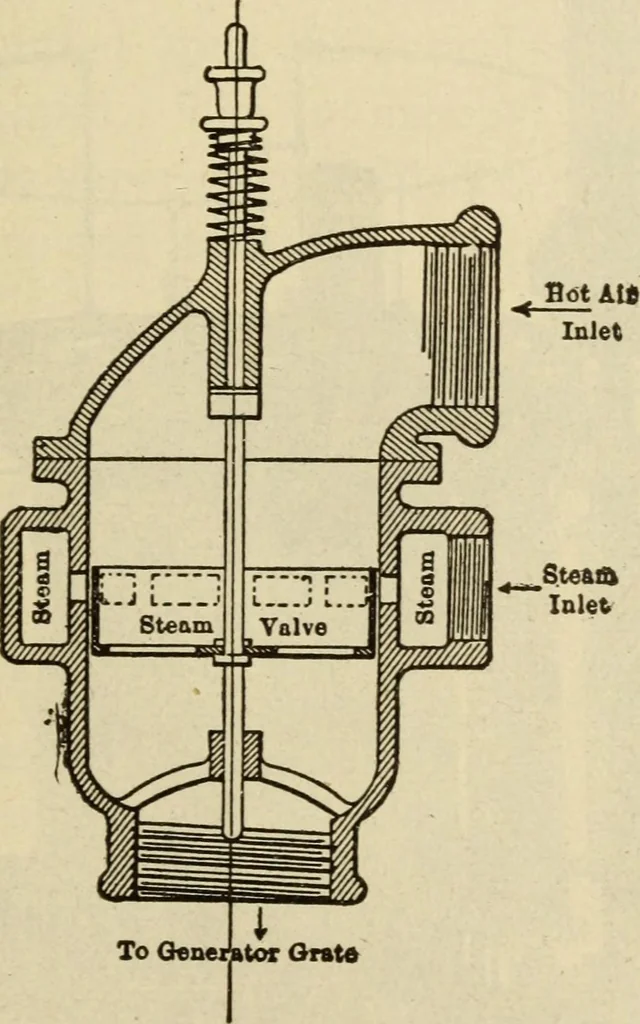

uction type,and consists of the usual generator, scrubber, and equalizingtank. The vaporizer for supplying steam to the fuel bed The Gas Producer 757 is an upper extension of the generator, but is located sothat the hot gases from the fuel bed do not impinge square-ly on the bottom of the… … Fig. 321 STEAM KEGULATOB within an equalizing chamber formed in its cover, andseparated from the drum by a rubber diaphragm. A small vent in the cover allows air to pass in or outslowly, forming a sort of brake on the fluctuations of pres-sure within the drum. The regulator controlling the…
