Twentieth century handbook for steam engineers and electricians, with questions and answers; a practical nontechnical treatise on the care and management of steam engines, boilers and electric machinery (1922)
Swingle, Calvin Franklin, 1846- [from old catalog] · Chicago, F. J. Drake & company · leaf 774

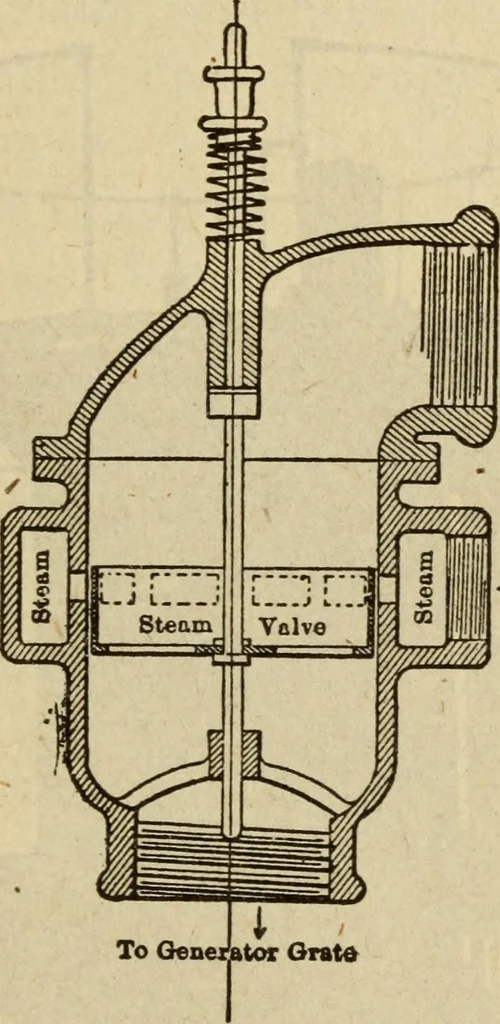

ction type,and consists of the usual generator, scrubber, and equalizingtank. The vaporizer for supplying steam to the fuel bed The Gas Producer 757 is an upper extension of the generator^, but is located sothat the hot gases from the fuel bed do not impinge square-ly on the bottom of the… … Inlet __Steftiainlet Fig. 321steam regulator within an equalizing chamber formed in its cover, andseparated from the drum by a rubber diaphragm. A small vent in the cover allows air to pass in or outslowly, forming a sort of brake on the fluctuations of pres-sure within the drum. The regulator…
