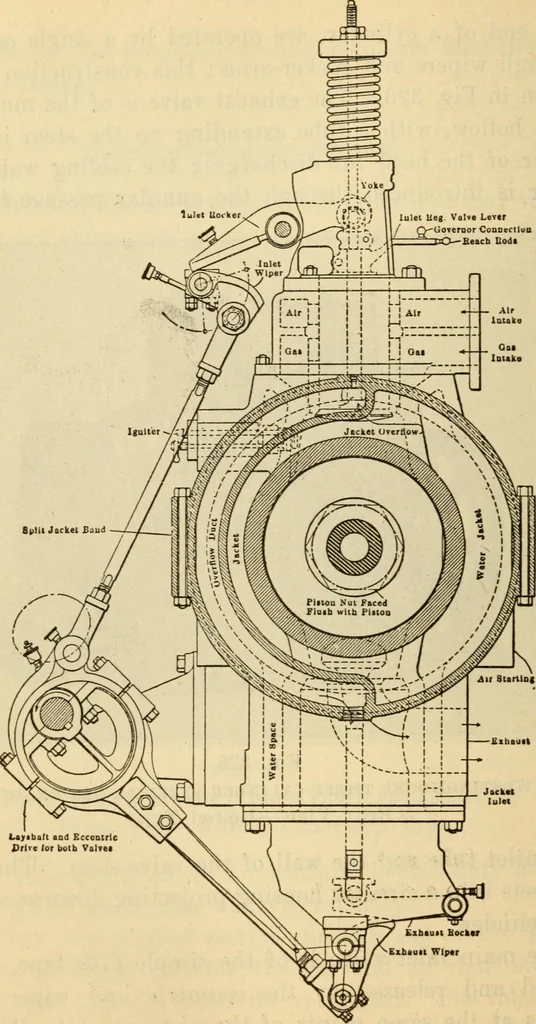

Fig. 328 westinghouse three-cylinder vertical gas engine Rear View—Belted Type the outlet tube and the wall of the valve-stem. The valvecage sets into a circular housing projecting downward fromthe cylinder. The main inlet valve is of the simple disk type, and isopened and released by the eccentric… … Jig. 329valve gear, westinghouse gas engine Westinghouse Gas Engine 773 which controls the quantity of air and gas admitted, thisbeing under the control of the governor. It is not shownin Fig. 329, but the connection for the governor rod isshown. The cylindrical valve fits closely in the bore of…
