Twentieth century handbook for steam engineers and electricians, with questions and answers; a practical nontechnical treatise .. (1916)
Swingle, Calvin F. (Calvin Franklin), b. 1846 · Chicago, F.J. Drake & company · leaf 906

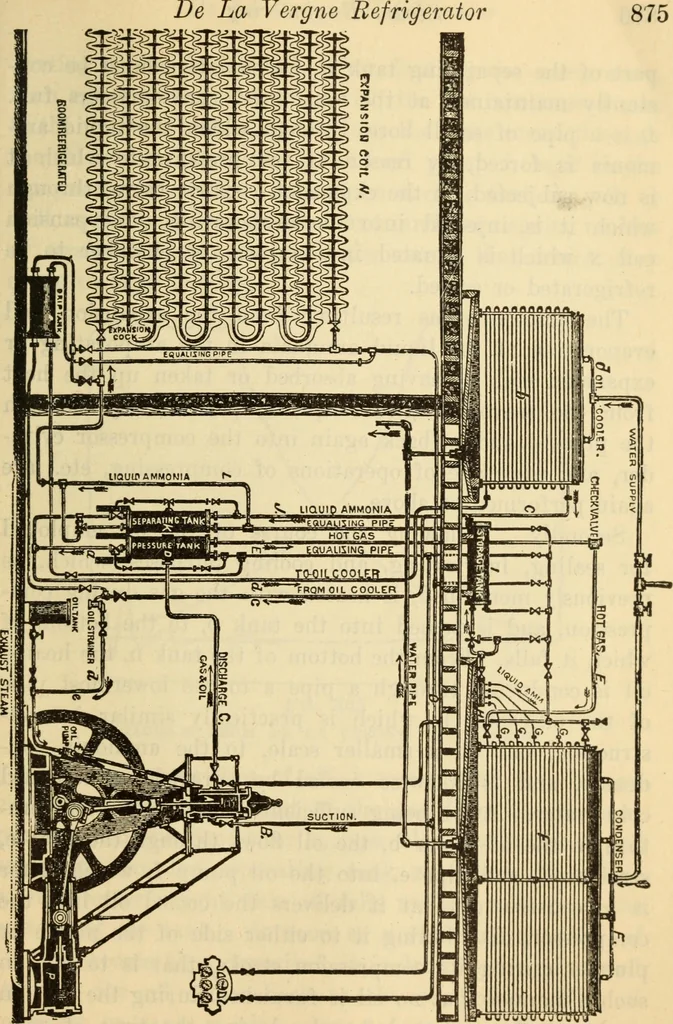

to retain the oil, and insure its deposition. From thepressure tank d the gas which still retains the heat dueto compression, passes through pipe e into the bottomor lower pipe of the condenser f, wherein, by the coolingaction of cold water running over the pipes, the heatedgas is first cooled and… … Fig. 364complete installation of a de la vergne refrigerating plant 876 Steam Engineering part of the separating tank k, which latter must be con-stantly maintained at the very least three-quarters full.L is a pipe of small bore, through which the liquid am-monia is forced, by reason of the…
