Twentieth century handbook for steam engineers and electricians, with questions and answers; a practical nontechnical treatise on the care and management of steam engines, boilers and electric machinery (1922)
Swingle, Calvin Franklin, 1846- [from old catalog] · Chicago, F. J. Drake & company · leaf 1074

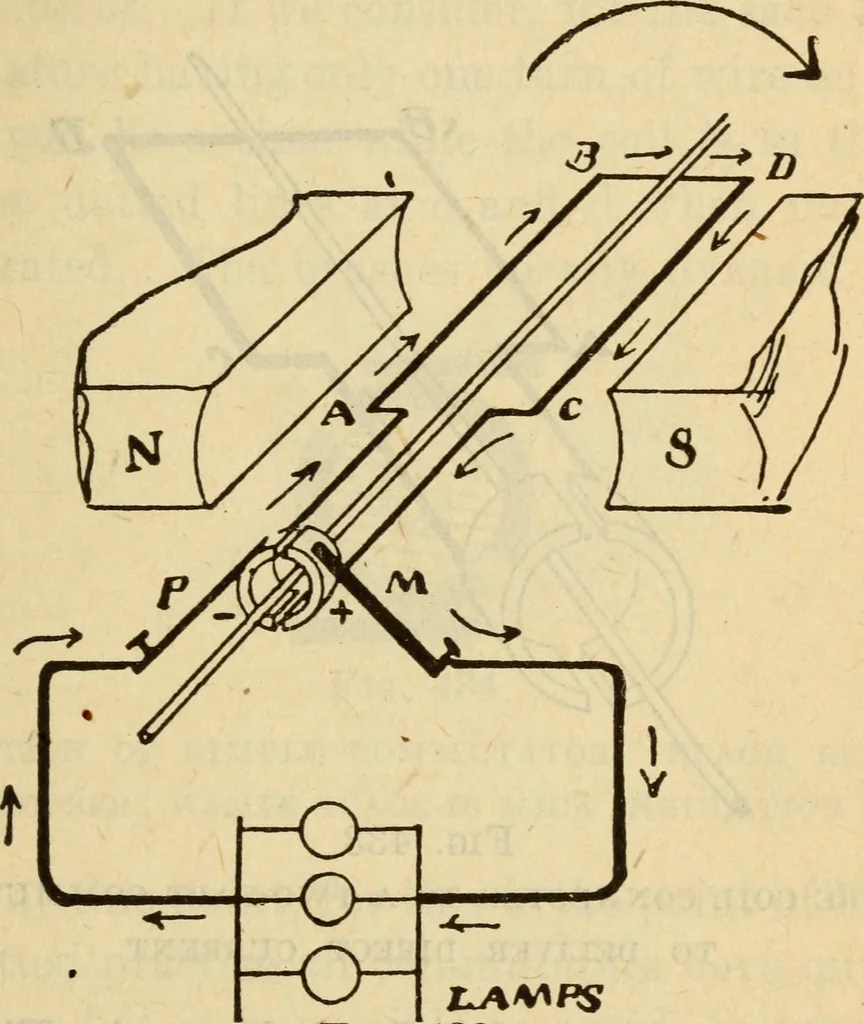

ying the speedin revolutions per second by the number of pairs of poles.The number of cycles is usually spoken of as the frequencyof the alternator. The Dynamo 1039 The usual frequencies are for power 25, for motor cir-cuits, and arc lamps ^Q, and for incandescent lighting 133, The Direct Current… … Fig. 432simple d. c. generator. the armature has made half a REVOLUTION, BUT BRUSH M IS STILL POSITIVE is called the positive brush. In wire CD the current flowsfrom C to D, making P the negative brush. After half a revolution the wire CD is over where ABwas, and is now delivering the current…
