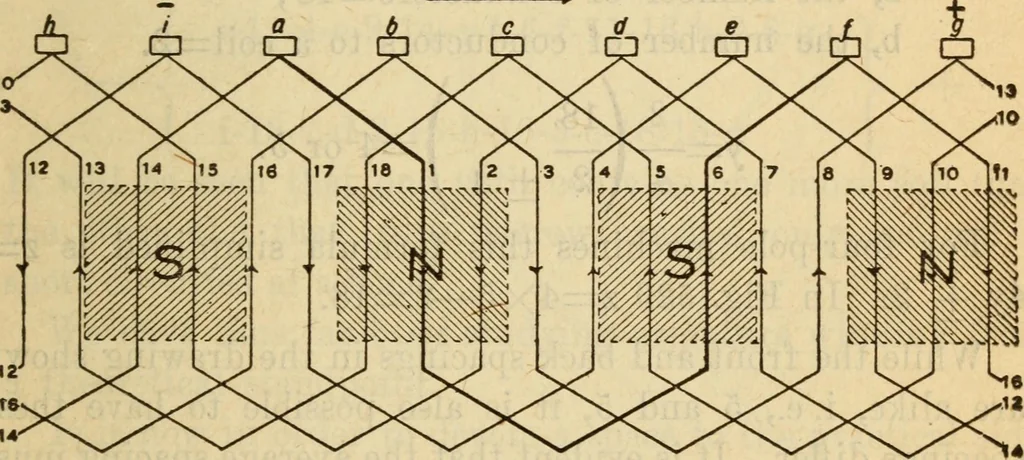

esame direction as that in the remaining conductors of theseries. It will also be noticed that the developed winding ofeach element forms a sort of wave and this winding is there-fore known as a ^Svave^^ winding. The scheme previously described may be employed to geta clearer understanding of this… … Fig. 530 shown by the winding table. The lines on the outside ofthe circle are to be considered as the rear connections of thearmature, and the lines inside the circle, the front connec-tions, or those connections running to the commutator seg-ments. Tracing out the winding (or its development.…
