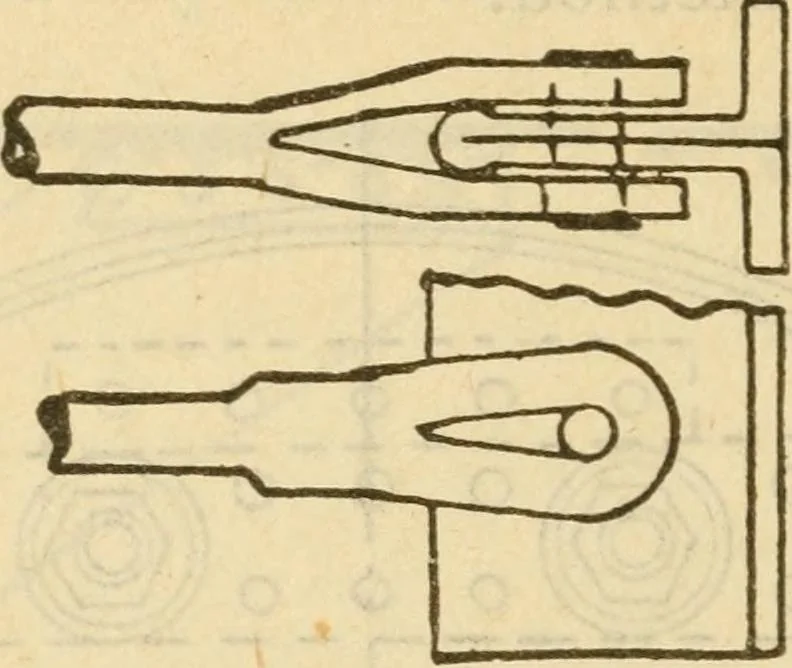

Fig. 45 Sometimes a combination of channel bar and diagonalcrow foot braces is used, as shown by Fig. 45. 110 steam Engineering A good form of diagonal crow foot stay is.obtained byusing double crow feet^ made of pieces of boilerplate bentas shown by Fig. 46 and riveted to the plate by four rivets. … Fig. 46 A hole is drilled through the body of the crow foot, anda bolt passing through this secures the forked end of thestay. xj=r-
