Twentieth century handbook for steam engineers and electricians, with questions and answers; a practical nontechnical treatise on the care and management of steam engines, boilers and electric machinery (1922)
Swingle, Calvin Franklin, 1846- [from old catalog] · Chicago, F. J. Drake & company · leaf 1245

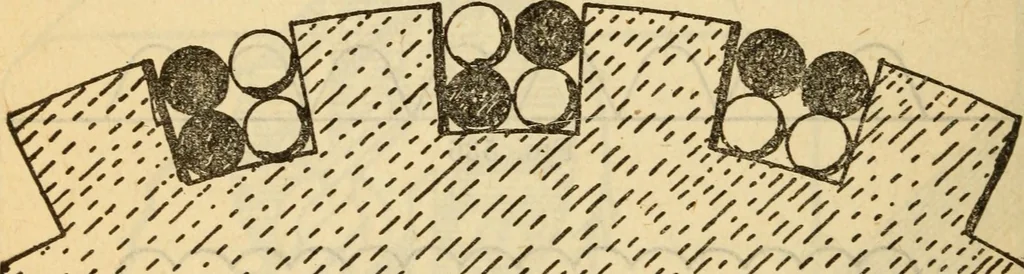

s should all be of the same distance fromthe center of the armature^, so as to cut the same numberof lines; it follows, therefore, that the plan showing onecoil wound over the other should not be used where it canbe avoided. 863. How do you manage to place two coils in one slot? Ans, In order to… … ^//^# Fig. 538 black circles represent the wdres of one set of coils, and thelight those of the other. The simplest method of winding two coils into one slotis, first to wind one coil complete, filling half the slot, thenturn the armature half way round and w^ind the secondcoil over the first. As…
