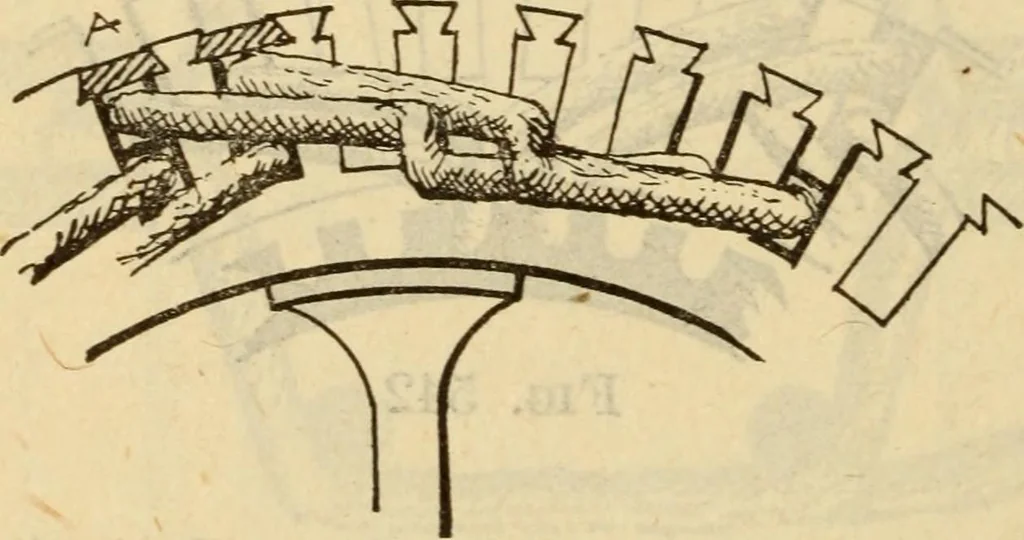

nding multipolar arma-tures is there? Ans. Another method of forming coils is illustrated inFig. 541. In this case the coil is first wound around twopins, as shown at bottom of the figure. The ends are thenplaced in clamps, as indicated by the dotted lines below,and the shaded lines in the center… … Fig. 543 Ans, The coil formed in the manner above assumes theshape shown in side view in Fig. 543 and is placed uponthe armature as there indicated, tli.e manner of placingbeing the same as that of the previous coil. 872. What name is given to this style of winding?Ans. This is termed a ^^barreP^…
