Twentieth century handbook for steam engineers and electricians, with questions and answers; a practical nontechnical treatise on the care and management of steam engines, boilers and electric machinery (1922)
Swingle, Calvin Franklin, 1846- [from old catalog] · Chicago, F. J. Drake & company · leaf 1360

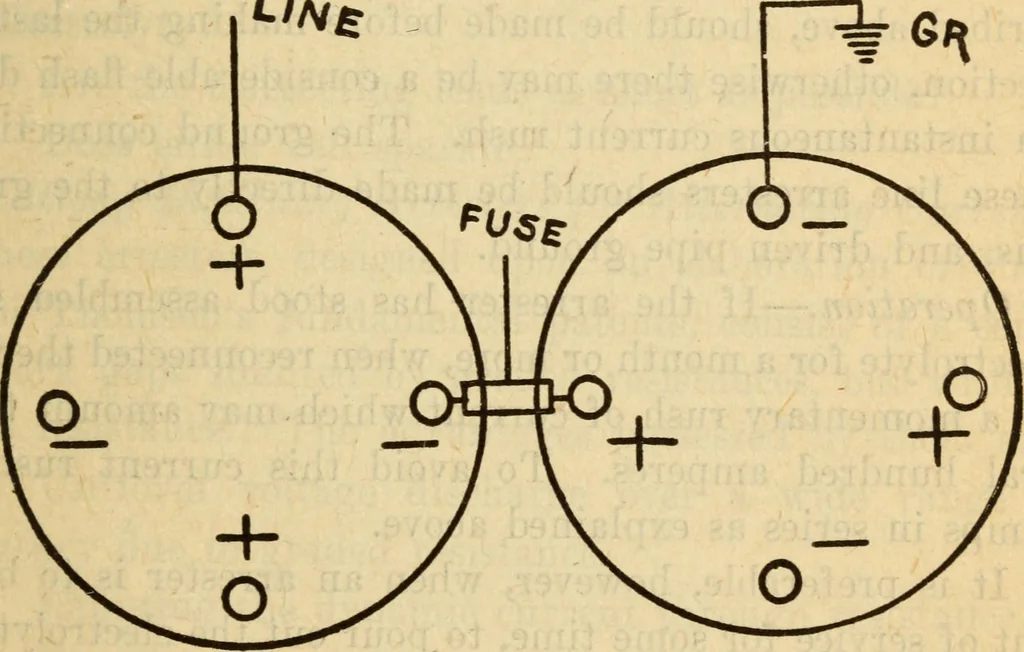

Arresters 1325 two cells. A diagram of connections is shown in Fig. 624. To Fill the Arrester.—Unscrew the metal rings at thetop of the jars and lift off the porcelain covers, with thealuminum plates attached, without removing the connec-tion between the two units. Pour enough electrolyte intothe… … Fig. 624cab abbesteb clean aluminum, or glass vessels and funnels. Take everyprecaution to prevent any dust or other material from get-ting into the electrolyte. Before connecting permanently to the circuit it is ad-visable to connect the arrester in series with five 120 voltincandescent lamps…
