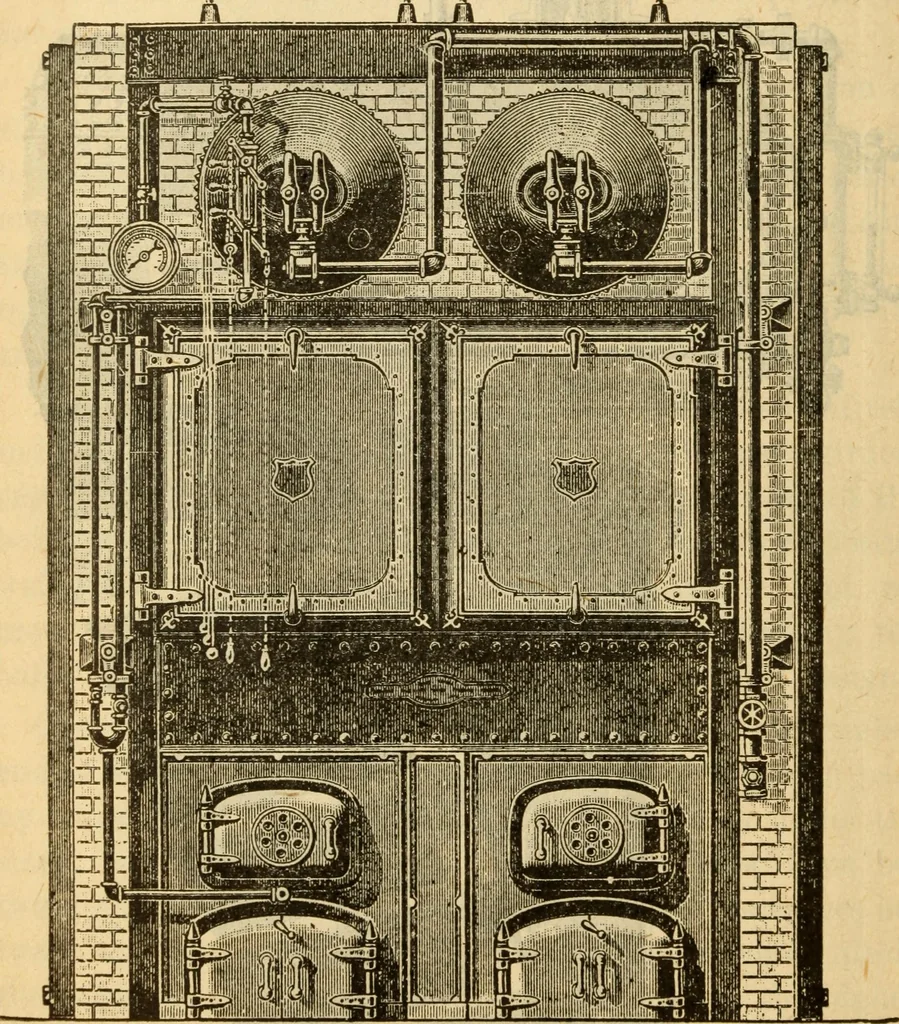

Fig. 9partial vertical section babcock & wilcox boiler 20 Steam Engineering tinuous circulation. As the passages are all large andfree, this circulation is very rapid, sweeping away thesteam as fast as formed, and supplying its place with wa- … FiG. 10 STANDARD FRONT OF BABCOCK & WILCOX BOILER ter; absorbing the heat of the fire to the best advantage;causing a thorough commingling of the water throughoutthe boiler and a consequent equal temperature, and pre- Stirling Water Tube Boiler 21 venting^ to a great degree, the formation of…
