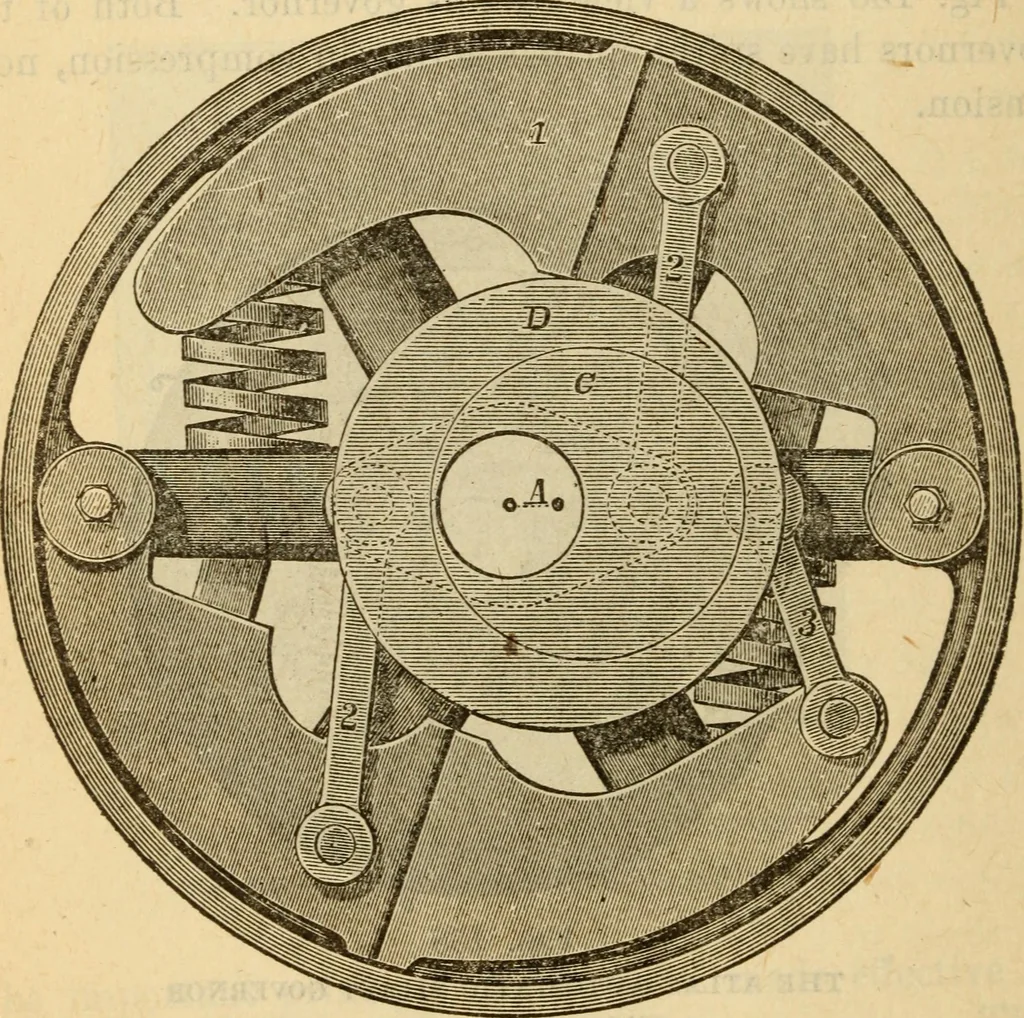

ig. 159 it willbe seen that it consists of a wheel which is fixed to theengine shaft, to which are hinged the weights 1, 1; theseweights are controlled by springs, one end of the same be- 436 Steam Engineering ing seated in a pocked fixed on the spoke of the wheel, orin some cases attached directly… … Fig. 159 ABMINGTON AND SIMS SHAFT GOVERNOR on the outside of the inner eccentric and free to turn isplaced an eccentric ring D, from which a rod 3 is connectedto the toe of one of the weights; on this outer eccentricring is placed the usual eccentric strap, to which is directlyattached the valve…
