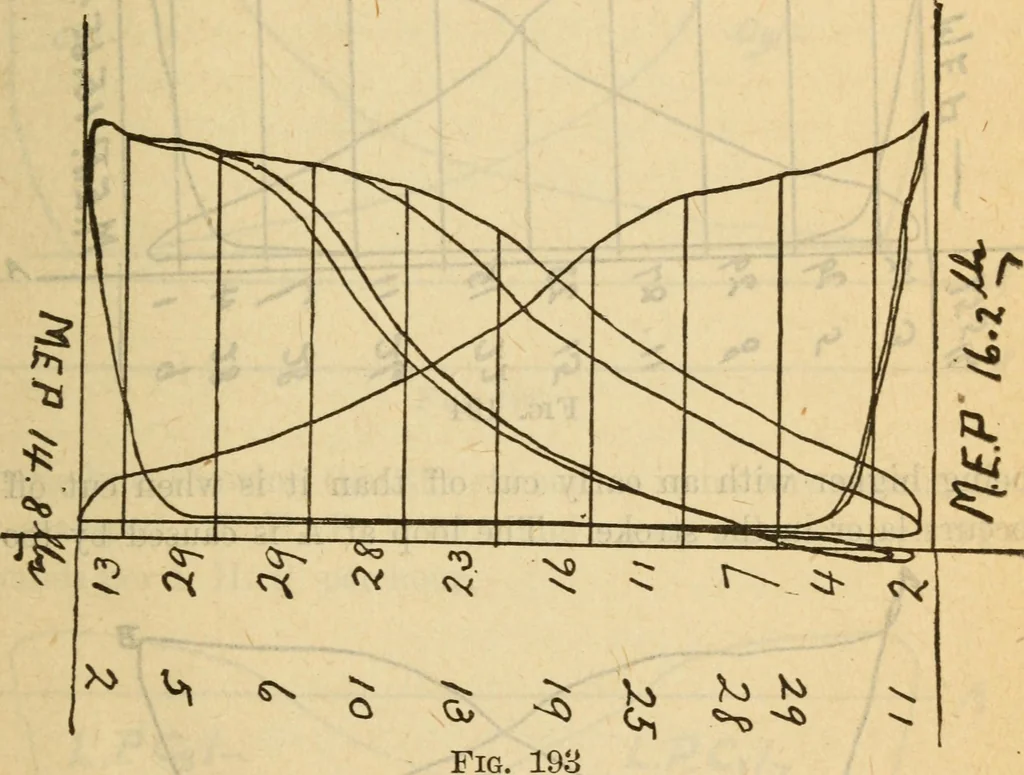

aken immediately after-wards, the cause of the trouble became apparent. Theengine was furnishing power for operating an electric street Diagram Analysis 507 railway on a small scale, and the variation in the pointsof cut off was caused by the stopping and starting of thecars. Fig. 193 is a notable… … Pig. 194 was secured by quick manipulation of the in-strument when it was known that the load was to be steadyfor a few seconds. Fig. 195 is from an Atlas single valve automatic ciit offengine with shaft governor. This engine was 16x84inches, running at 105 R. P. M., and at the time the diagram was…
