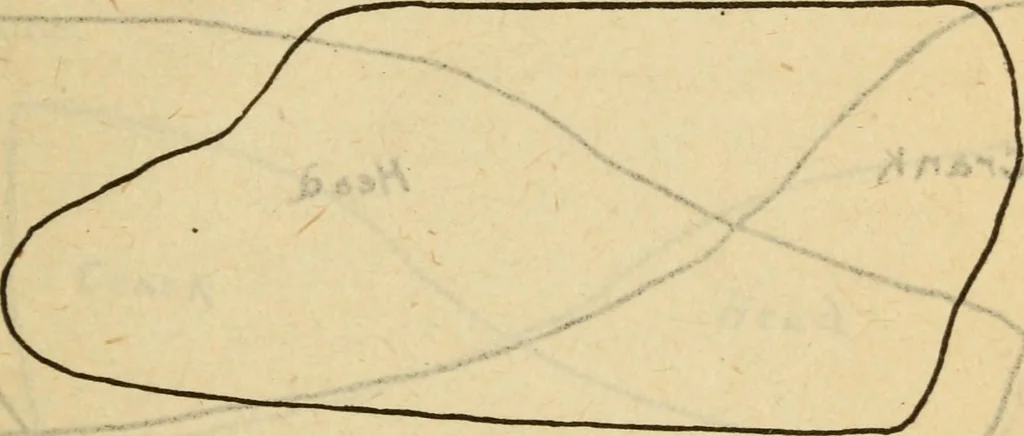

cond^ the end of the exhaust pipe was found to be sub-merged in a nearby pond of water to which it had beencarried^ probably with a view of making a condensing en-gine out of it! It was also found that there were no lessthan four superfluous elbows in the exhaust pipe that couldeasily be dispensed… … Fig. 202 horse power per hour^ all of which conditions were about asbad as ihey could be. After increasing the lead and adjusting the cut off aNo. 16 spring was used and Fig. 202 was produced which,although still showing late admission^ is an improvementover the original diagram. The initial…
