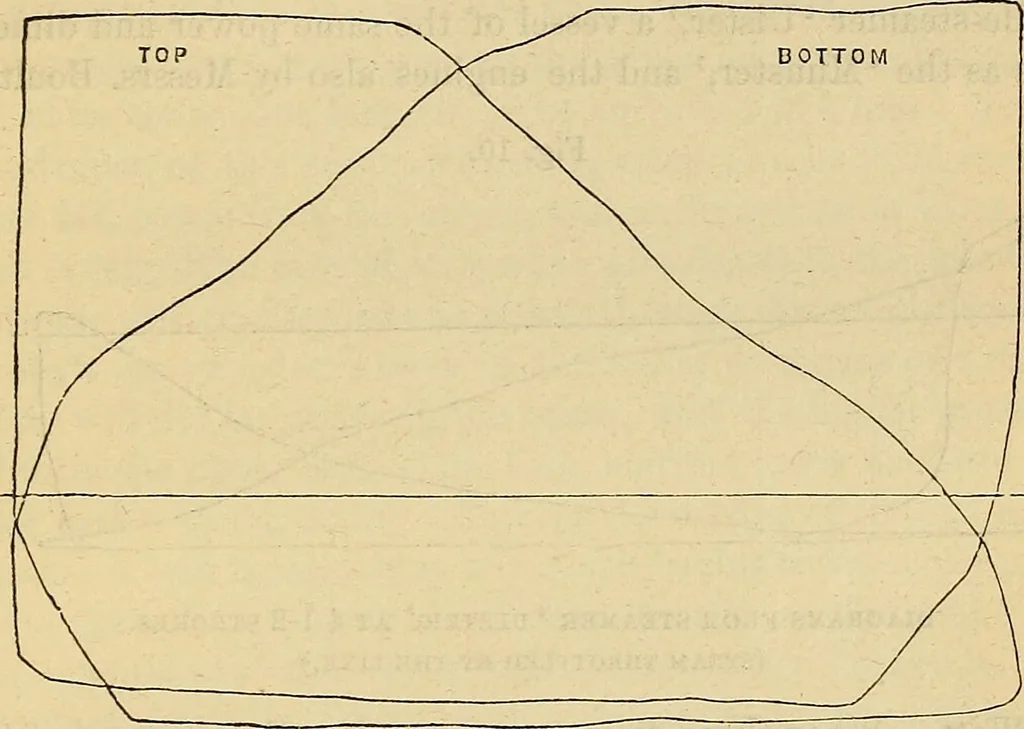

within the cylinder measured downward from the at-mospheric line m l ; and ccc represent the three points at whichcompression begins, answering to the three degrees of expansion.The letters a, a\ V, b, and c represent the corresponding pointsfor each of the three diagrams taken from the bottom of… … DIAGKAMS TAKEN FROM HOLYHEAD FADDLE-STEAMER ULSTER WHEN UNDER WAT. \nder. The diagrams given above were taken from the Holy-head steam-packet Munster, the engines of which were con-structed by Messrs. Boulton and Watt. The cylinders are oscil-lating, of 96 inches diameter and T feet stroke. The…
