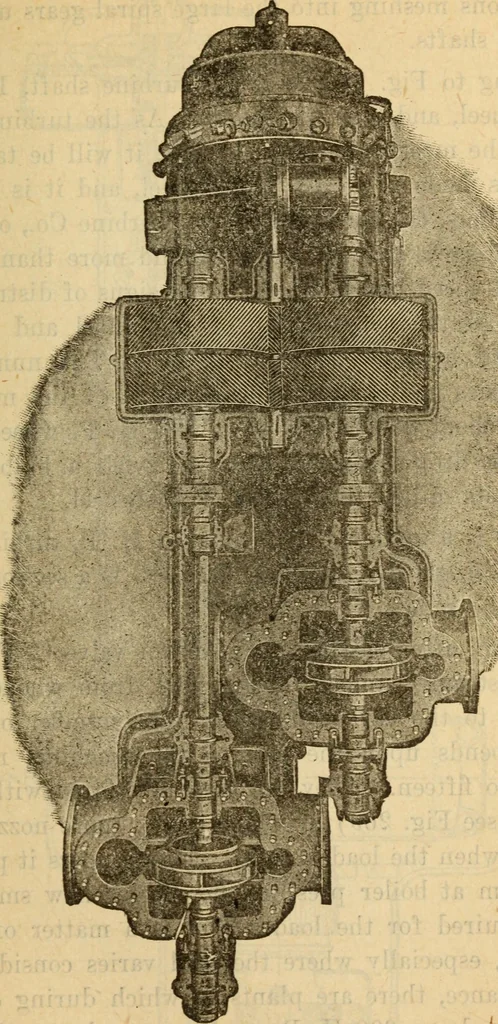

^fc^W^/^^Sfr* Fig. 270H. P. turbine and rotary pump with the upper half of thegear case and field frame removed for purposes of inspec- Be Laval Steam Turbine 639 … Fia. 271tion. The slender shaft is seen projecting from the centerof the turbine case, and upon this shaft are shown the 640 Steam Engineering small pinions meshing into the large spiral gears upon thetwo pump shafts. Eeferring to Fig. 270^ A is the turbine shafts B is theturbine wheels and C is…
