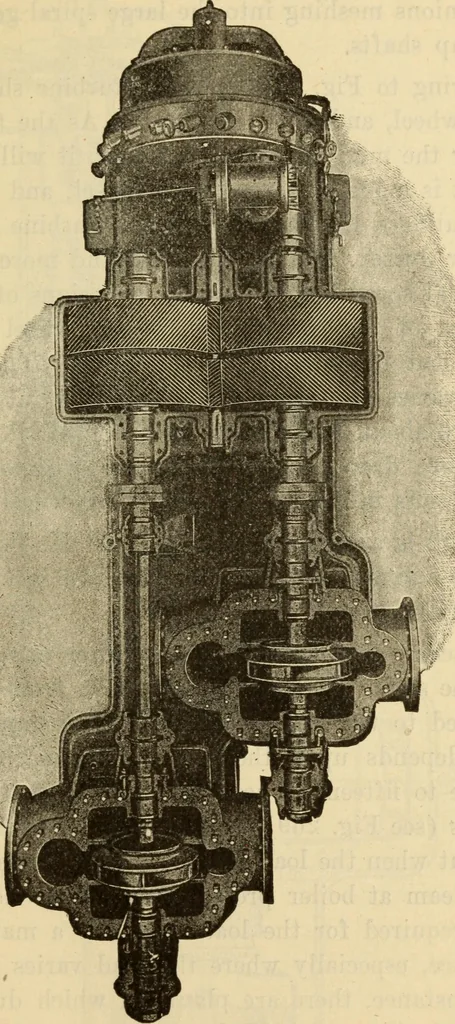

Fig. 270 H. P. turbine and rotary pump with the upper half of thegear case and field frame ramoved for purposes of inspec- De Laval Steam Turbine 639 … Fig. 271 tion. The slender shaft is seen projecting from the centerof the turhine case, and upon this shaft are shown the 640 Steam Engineering small pinions meshing into the large spiral gears upon thetwo pump shafts. Eeferring to Fig. 270, A is the turbine shaft, B is theturbine wheel, and C is…
