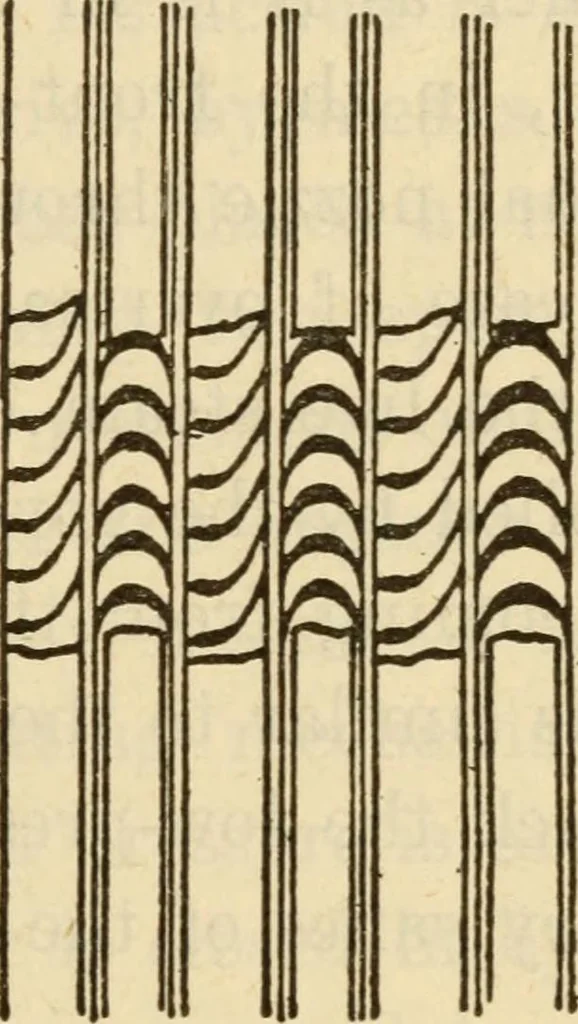

the generator^ pump^ or blower, which is to be driven bythe turbine. The flow of the steam from the inlet valve, r, to theexhaust outlet, g, and the manner of the working of thesteam in the turbine is as follows: The steam passingthrough the main regulating valve, s, enters the circularchannel of… … IJ,7^ t^n^R-lR Fig. 289 which give the steam the right expansion in the rightdirection. With this velocity attained in the stationaryblades, the steam impinges upon the vanes, u, of the firstrunning wheel, and the bore of the housing can be keptwithin larger limits, because the steam fiowing…
