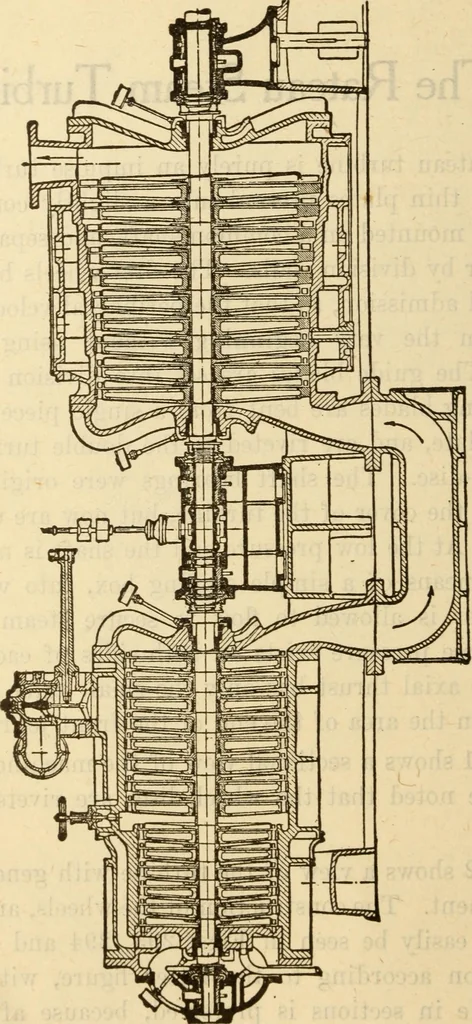

ig. 291 shows a sectional view of the machine, in whichit is to be noted that the wheel discs are riveted to theirhubs. Fig. 292 shows a view of the turbine with generator, andoil equipment. The construction of the wheels, and divisionwalls can easily be seen in Figs. 293, 294 and 295.… … Fig. 291The most recent Eateau turbine is of the action type,that is to say, expansion of the steam is fully carried out in Rateau Steam Turhine 683
