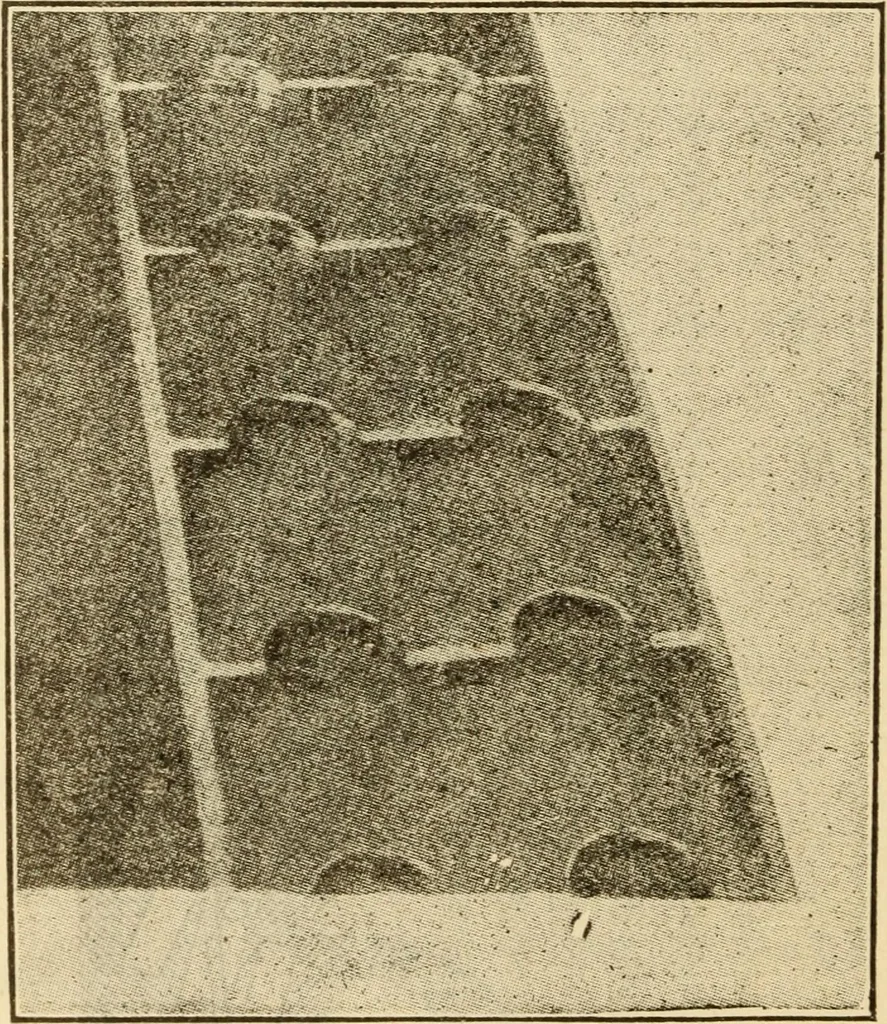

a continuous closed cylinder in which the steam in 696 Steam Engineering its course through the wheel continually whirls or spiralsaround and around. With this type of turbine the steamenters the bucket wheel from the nozzle as shown in Fig.299, but instead of escaping after it has passed… … Fig. 301Fig. 301 shows a portion, of the rim of this style ofwheel with its symmetrical double buckets. The steam jetis split into two symmetrical parts by the sharp middle par-tition. The direction of flow of the two steam streamsis now reversed, and they are returned to the middle planeof the…
