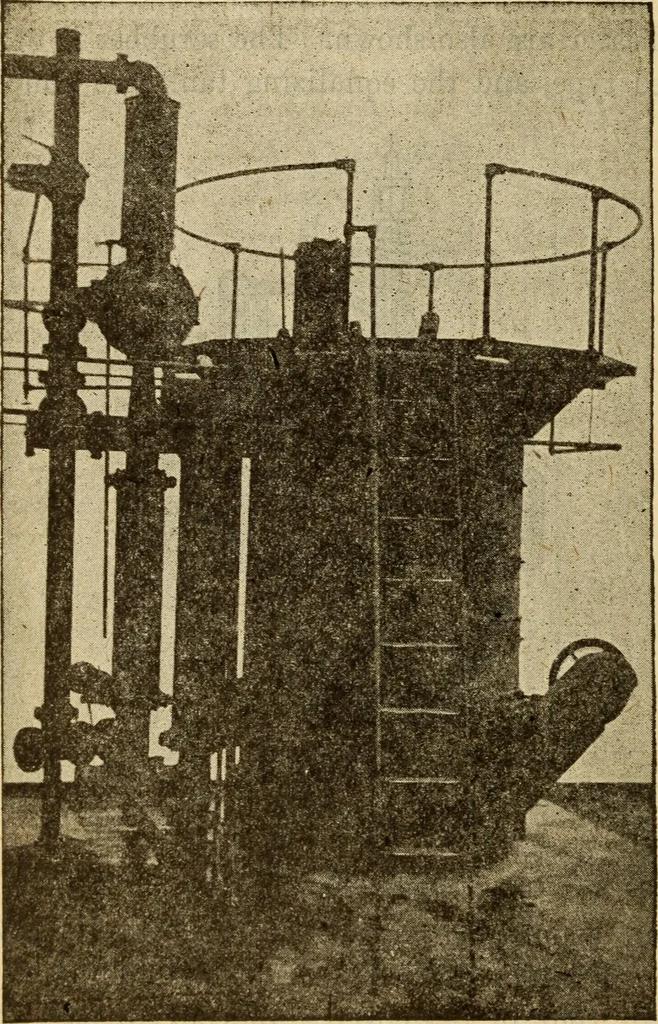

er allows air to pass in or outslowly, forming a sort of brake on the fluctuations of pres-sure within the drum. The regulator controlling the ad-mission of steam to the fuel bed is shown in section mFig. 321. The outlet at the bottom is connected to theash pit of the generator. The upper intake… … Fig. 322smith automatic suction gas producer increases^ the increasing suction gradually pulls down thevalve (which is a piston valve) until the steam ports areuncovered to an extent depending upon the load. This The Gas Producer 759 arrangement prevents the chilling of the fire with steam atvery…
