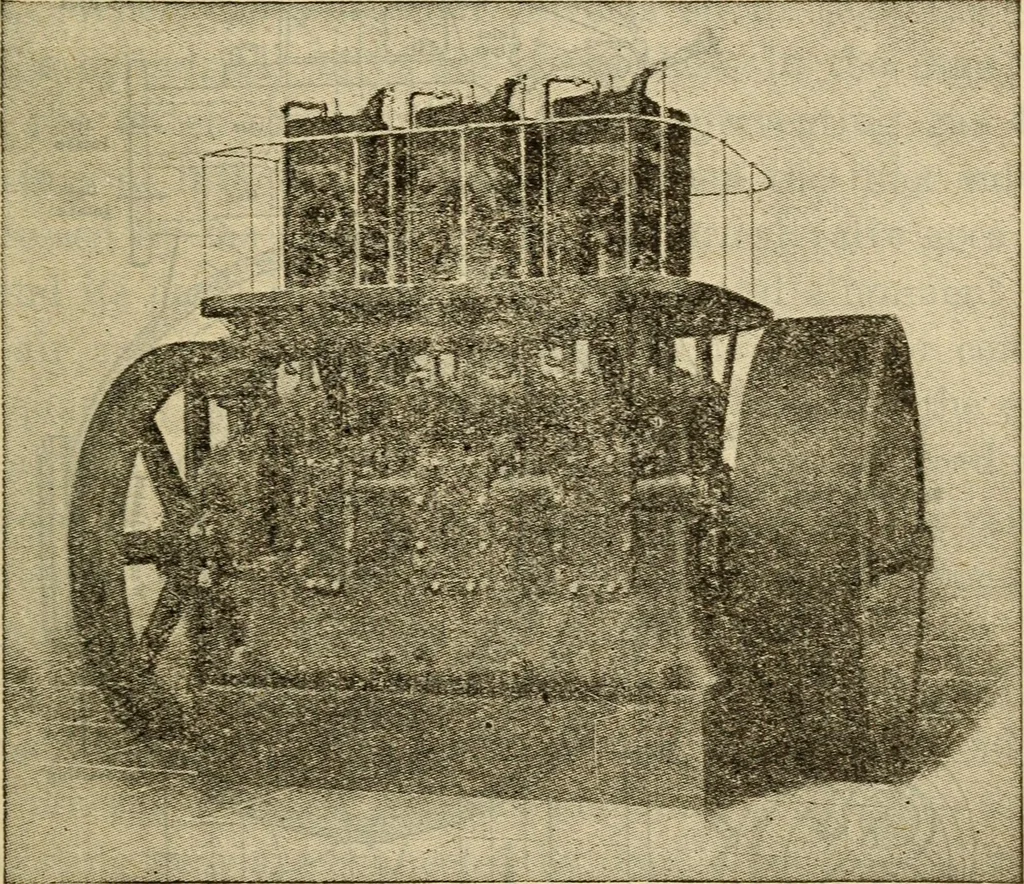

ear. The inlet andexhaust valves are located at opposite ends of the verticalcylinder diameter, as shown in Fig. 329. Both valves, at Westinghouse Gas Engine 771 each end of a cylinder, are operated by a single eccentricthrough wipers and rocker-arms; this construction is alsoshown in Fig. 329. The… … Fig. 328 westinghouse three-cylinder vertical gas engine Rear View—Belted Type the outlet tube and the wall of the valve-stem. The valvecage sets into a circular housing projecting downward fromthe cylinder. The main inlet valve is of the simple disk type, and isopened and released by the eccentric…
